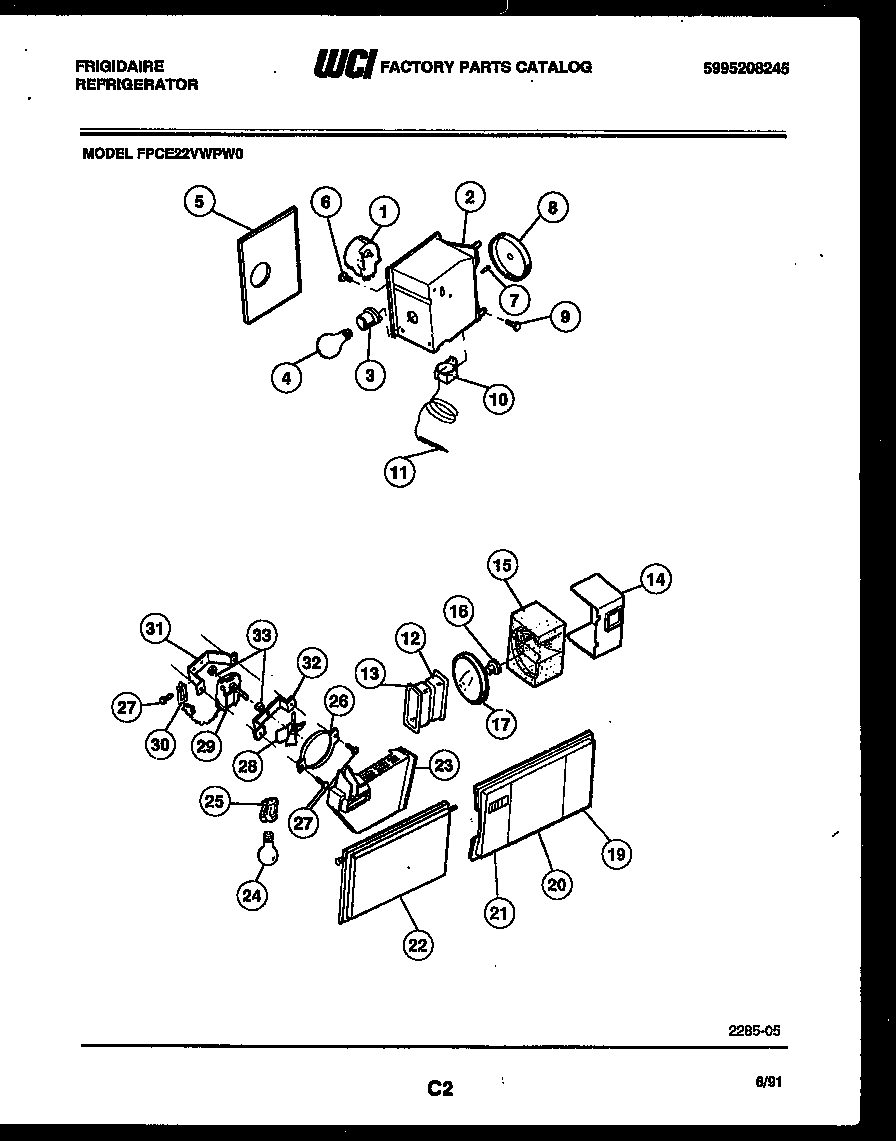

FPCE22VWPL0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*48465	WCI 5303015135
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 5308017561
3	SOCKET-LIGHT/LAMP
5	WCI 3001269
7	WCI 5303001260
8	WCI 5308010380
9	5304455649 Frigidaire Refrigerator Screw
10	WCI 5308006984
11	TUBE
12	WCI 5303001276
13	WCI 5303001277
14	WCI 5303211383
15	WCI 5308000771
16	WCI 5300185373
17	WCI 5308010379
19	LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20	SHIELD-LIGHT, REFRIGERATOR
21	LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22	WCI 5308015585
23	WCI 5308015557
24	316538904 Frigidaire Oven Lamp Light
25A	WCI 08015577
25	218906802 Frigidaire Light Lamp Socket
26	RING-FAN ORIFICE
27	5304455651 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 5308000107
31	BRACKET-MOTOR MTG, REAR
32	WCI 5303205118
33	G187559 Frigidaire Refrigerator Bushing
