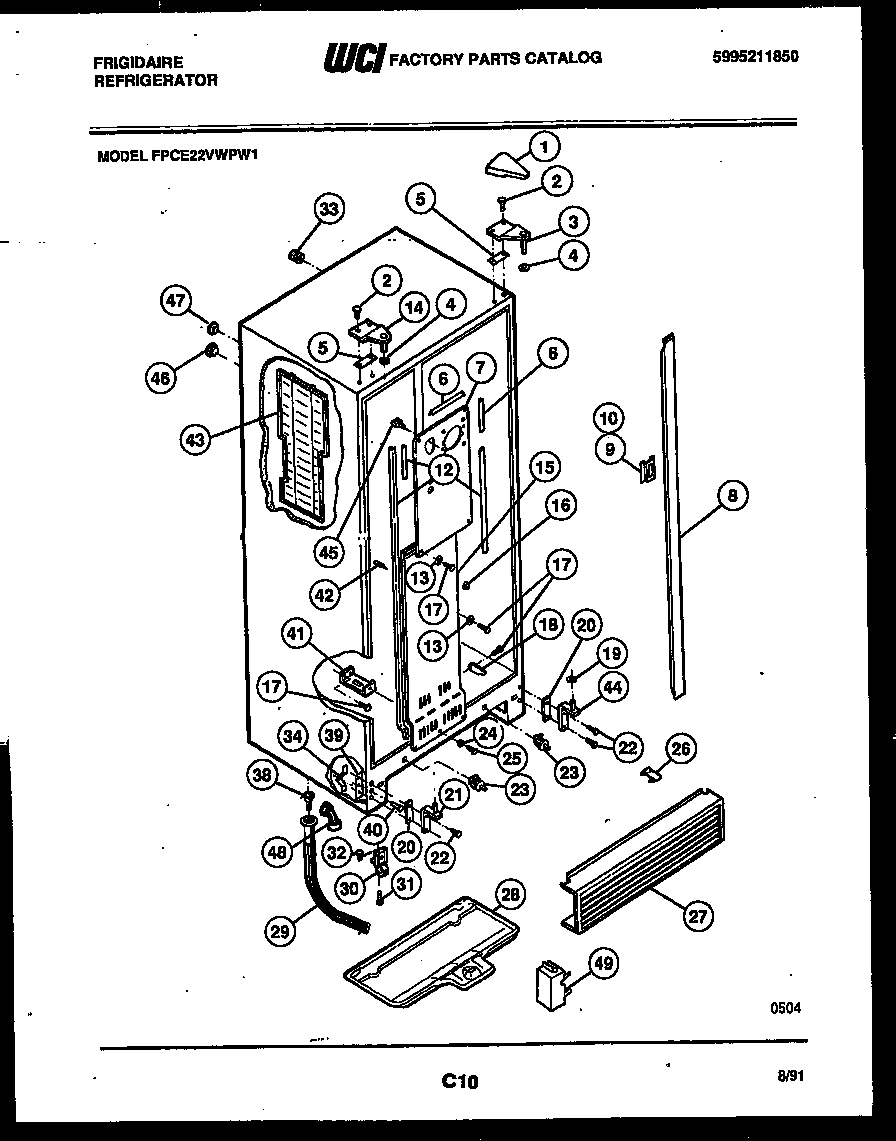

FPCE22VWPL1 04 – CABINET PARTS

Products

Position	Product
*52725	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*52725	PUSH NUT-SCREW
1	COVER-UPPER HINGE, ALMOND
1	COVER-UPPER HINGE, WHITE
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
3A	WCI 5308062296
4	WCI 5308000186
5	SHIM - UPPER HINGE
6	WCI 5303001219
7A	5303208309 Frigidaire Refrigerator Plug Hole
7	COVER-COIL UPPER
8	WCI 5303916448
9	WCI 5300169100
10	WCI 5303001281
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
14	WCI 5303001062
15	COVER-COIL LOWER
16	WCI 5303001231
17	5304455650 Frigidaire Refrigerator Screw
18	DAMPER, MEAT KEEPER
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM LS
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP, GRILLE (2)
27	WCI 5303200752
28	WCI 5303001026
29	WCI 5303209723
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43	DIVIDER-ICEMAKER
44	HINGE-BOTTOM
45	SUPPORT-COIL COVER
46	WCI 5303001286
47	WCI 5303001287
48A	NUT, 7/16 X 20, NYLON
48	WCI 5308010289
49	COVER-BOTTOM HINGE
