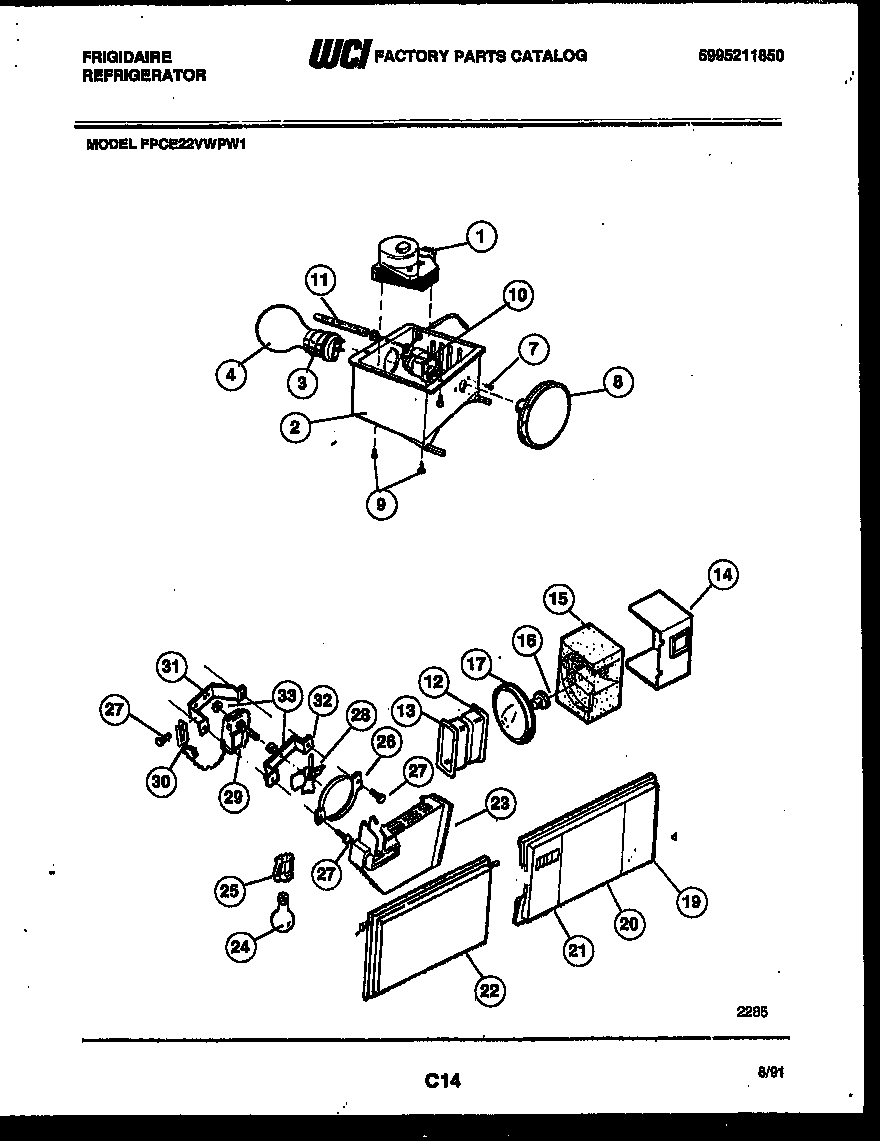

FPCE22VWPL1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FPCE22VWPL1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FPCE22VWPL1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*52733WCI 5303015135
1215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2WCI 5303275517
3SOCKET-LIGHT/LAMP
4AWCI 3001269
7WCI 5303001260
8WCI 5308010380
95304455649 Frigidaire Refrigerator Screw
10WCI 5303274947
11HOUSING, CONTRL CAP TUBE
12WCI 5303001276
13WCI 5303001277
14WCI 5303211383
15WCI 5308000771
16WCI 5300185373
17WCI 5308010379
19LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20SHIELD-LIGHT, REFRIGERATOR
21LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22WCI 5308015585
23WCI 5308015557
24316538904 Frigidaire Oven Lamp Light
25AWCI 08015577
25218906802 Frigidaire Light Lamp Socket
26RING-FAN ORIFICE
275304455651 Frigidaire Refrigerator Screw
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5308000107
31BRACKET-MOTOR MTG, REAR
32WCI 5303205118
33G187559 Frigidaire Refrigerator Bushing
