FPCE22VWPW1 07 – ICE DOOR, DISPENSER AND WATER TANKS

FPCE22VWPW1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

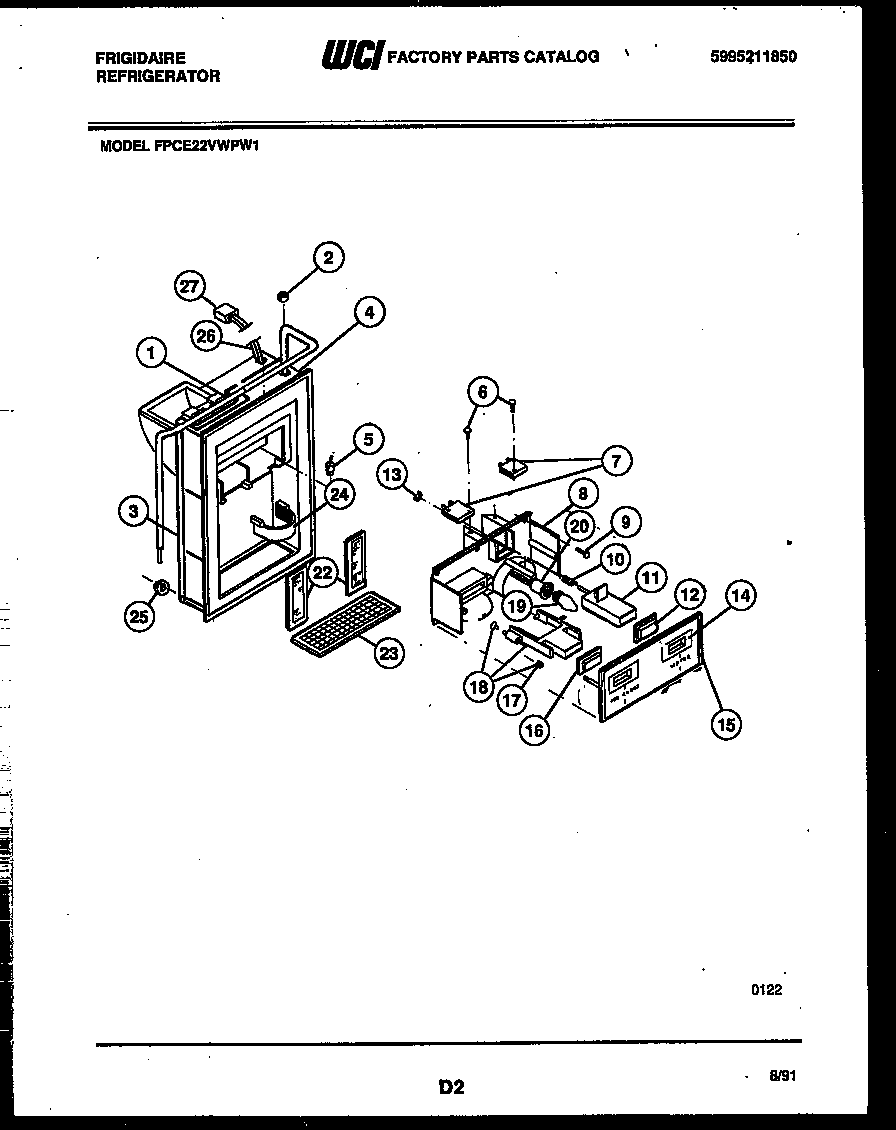

FPCE22VWPW1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*52735WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4WCI 3204826
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12WCI 5308012815
13WCI 53032832214
14WCI 5308015599
15WCI 5308015587
16WCI 5308012816
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20SOCKET-LIGHT BULB
22PAD-FILL (2)
23WCI 5303208845
24WCI 5318000402
25NUT, SELF-THREADING, 1/8
26WCI 5303001082
27PLUG-HARNESS BOTTOM
