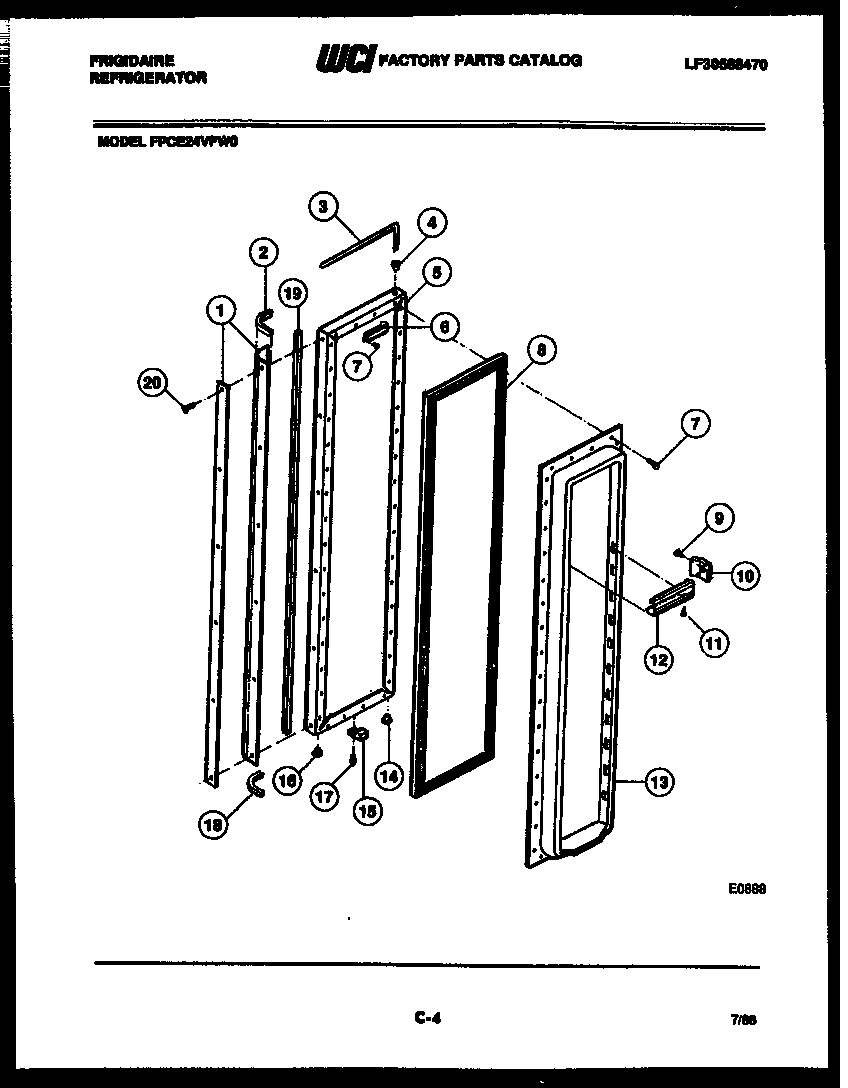

FPCE24VFL0 03 – FREEZER DOOR PARTS

FPCE24VFL0 03 – FREEZER DOOR PARTS

Written by

in

FPCE24VFL0 03 – FREEZER DOOR PARTS

Products

PositionProduct
1WCI 8017423
2END CAP-TOP (2)
3WCI 3200715
4WCI 8012008
5WCI 8009984
6WCI 3200272
7SCREW-PANEL MOUNTING (56)
8WCI 3200717
9WCI 8000812
10WCI 3200719
10AWCI 3200720
11WCI 8002773
12WCI 3200721
13WCI 3200722
14HINGE BEARING (8)
15WCI 8000790
16WCI 8002751
17WCI 8000839
18END CAP-BOTTOM (2)
19WCI 8010229
20SCREW-HANDLE MOUNTING (4)
