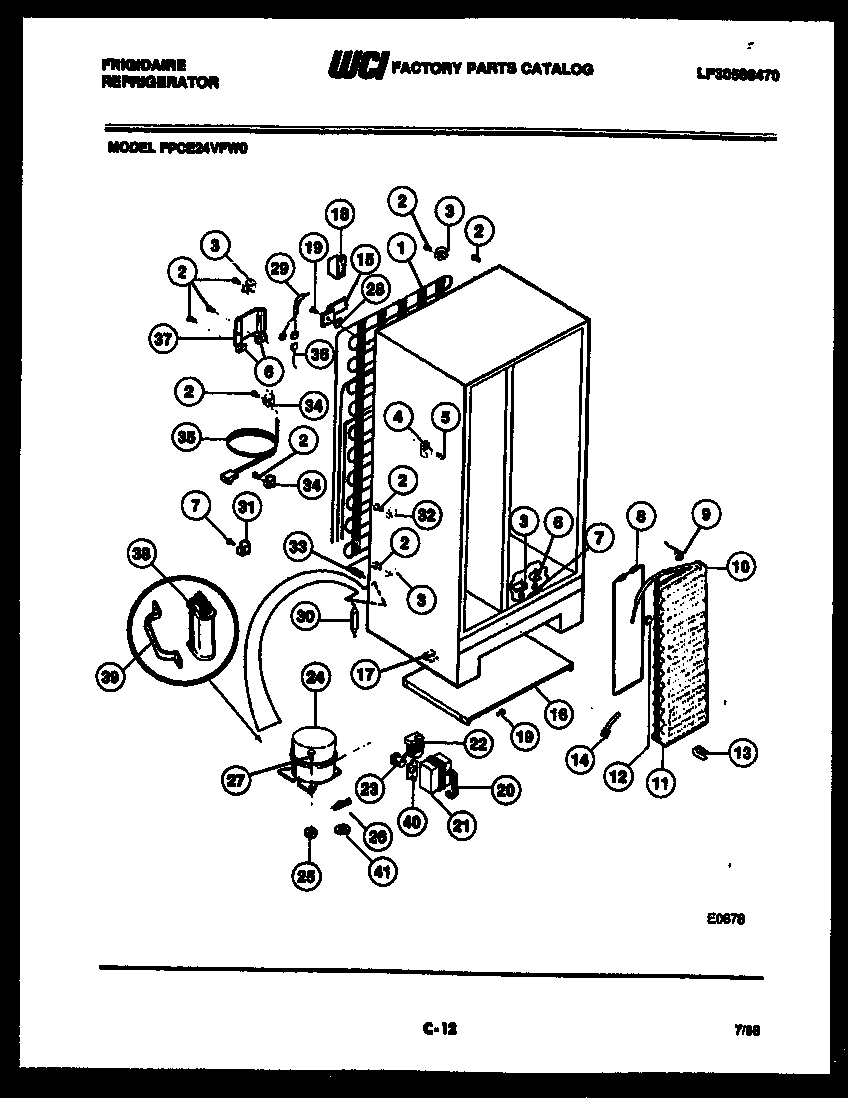

FPCE24VFL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 8017119
2	SCREW-PANEL MOUNTING (56)
3	WCI 8000221
4	CLAMP
5	SCREW (5)
6	CLAMP-STRAIN RELIEF (3)
7	SCREW (3)
8	WCI 8017562
9	WCI 8017563
10	WCI 8017565
11	WCI 3017362
12	WCI 8000828
13	WCI 8002777
14	WCI 8000110
15	WCI 8000296
16	WCI 8017118
17	WCI 8000099
18	WCI 8002782
19	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
20	WCI 8000117
21	WCI 8000116
22	WCI 8017226
23	WCI 8017555
24	WCI 8950223
25	WCI 8008778
26	CLIP (4)
27	WCI 8000029
28	WCI 8009617
29	WCI 3015098
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	WCI 8008782
32	WCI 8000133
33	WCI 8003645
34	CLAMP-CABLE (3)
35	WCI 8000064
36	WCI 8009616
37	WCI 8013644
37A	WCI 9960005
38	WCI 8017230
39	WCI 8017231
40	CLIP-OVERLOAD
41	WASHER (4)
