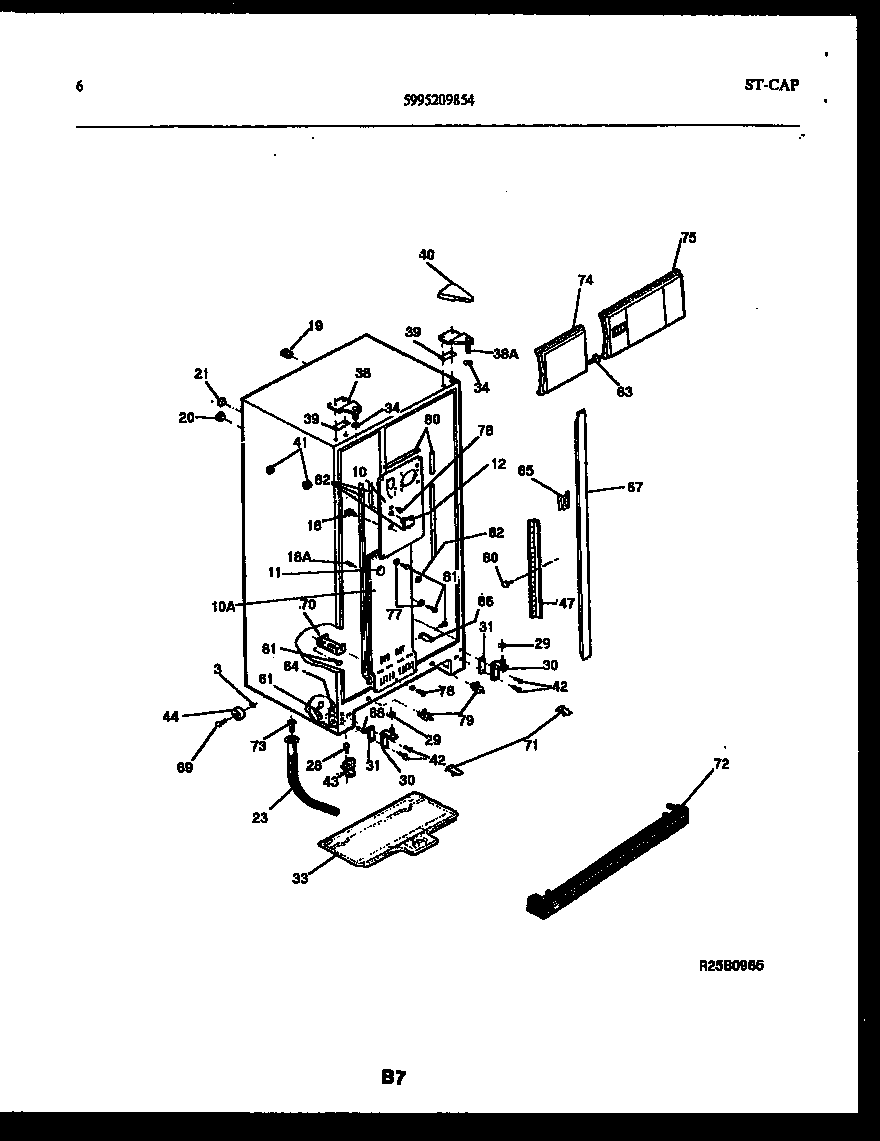

FPCE24VFL1 04 – CABINET PARTS

Products

Position	Product
3	Nut,push-on
10	WCI 08002766
10A	COVER-COIL LOWER
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5316129409
18	SUPPORT-COIL COVER
18A	WCI 5303001250
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23A	CLAMP-TUBE
23	WCI 5303209723
28	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
33	WCI 5303001026
34	WCI 5308000186
38	WCI 5303001062
38A	WCI 5308012934
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38A	241710601 Frigidaire Refrigerator Screw
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	ROLLER-FRONT (2)
44	WCI 5303001030
47	CHANNEL-SHELF MTG (2)
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 5300077210
