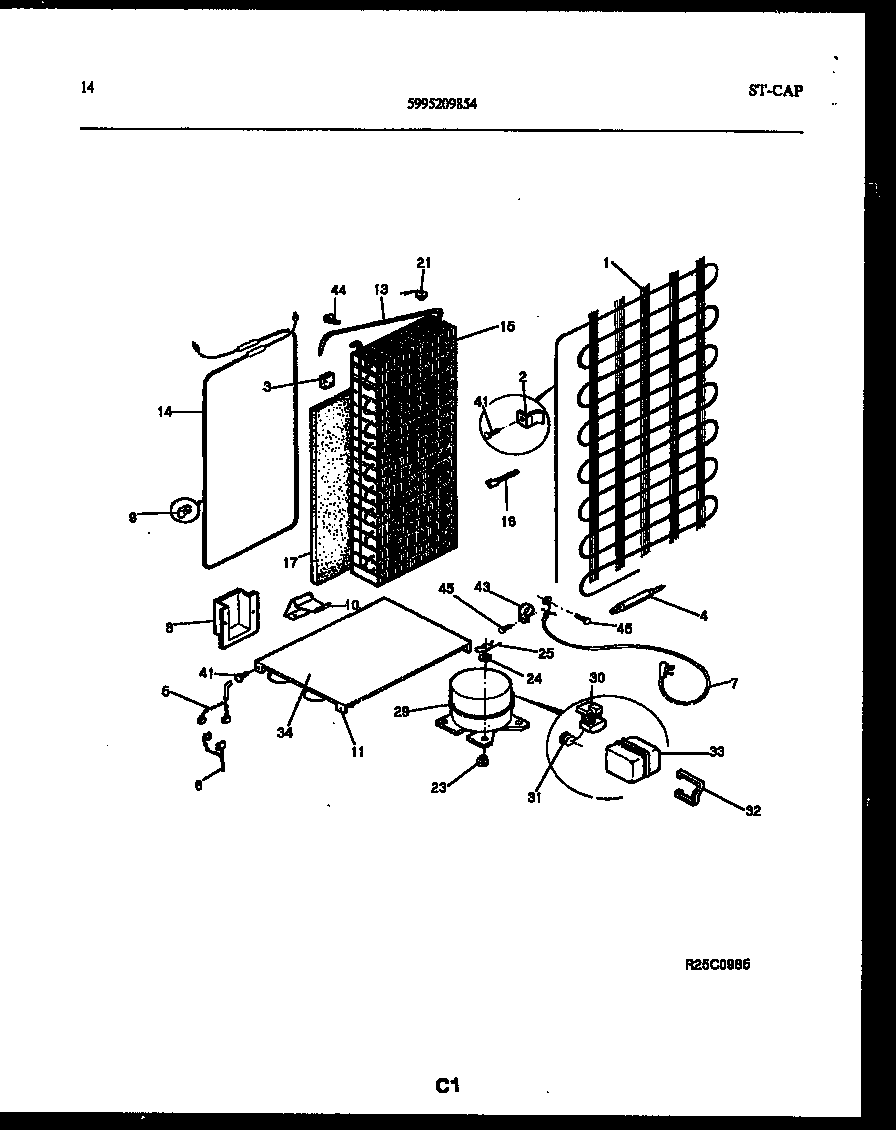

FPCE24VFL1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*55504	WCI 5308009619
*55504	218843801 Frigidaire Refrigerator Screw
*55505	WCI 5300189379
*55504	5304455852 Frigidaire Refrigerator Screw
1	WCI 5308017119
2	BRACKET, MOUNTIN, CONDENSER, (4)
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3	WCI 5308000828
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 5303015098
6	WCI 5308009616
7	CORD-ELECTRIC POWER
8	WCI 5303001197
9	WCI 5308002777
10	WCI 5308002780
11	WCI 5308002782
13	WCI 5308017565
14	WCI 5303007568
15A	TUBE-INLET (NOT ILLUSTRATED)
15	WCI 5303916605
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303001235
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
29A	CAPACITOR
29	WCI 5308950223
30	RELAY-TL
31	5303271616 Frigidaire Refrigerator P1-Overload
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
34	WCI 5308017118
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
