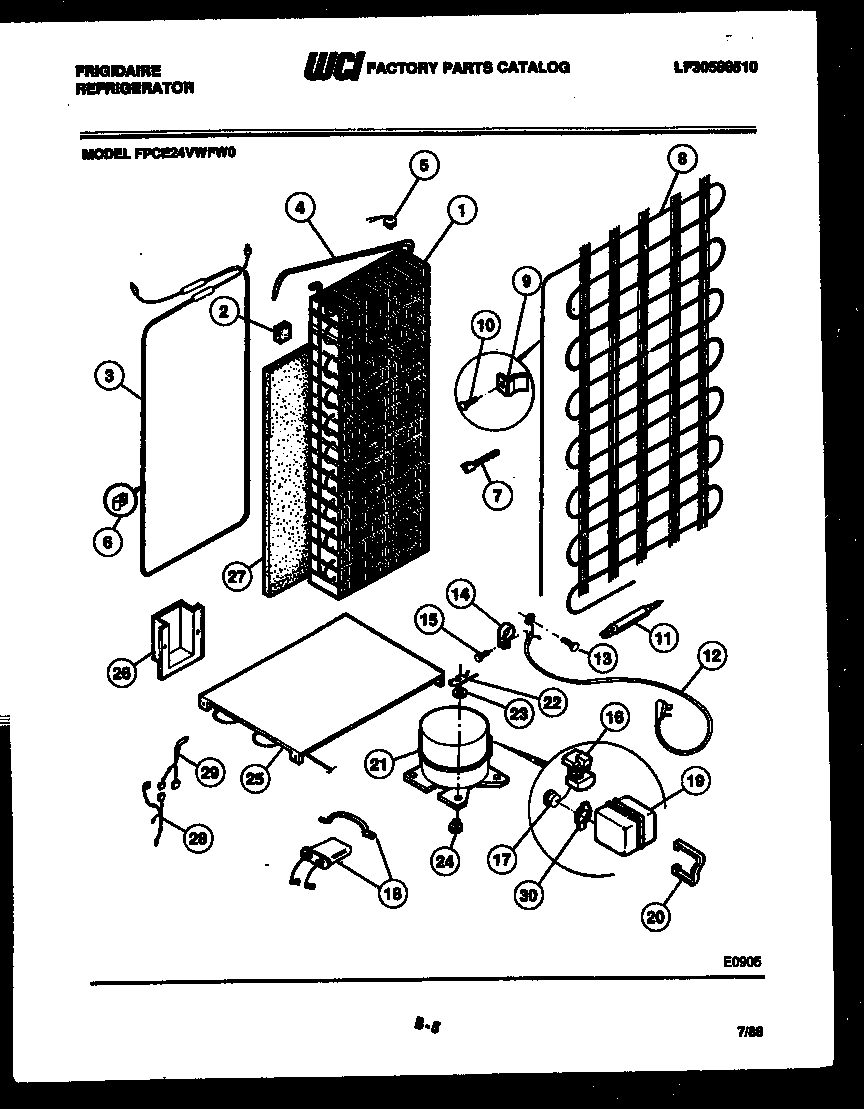

FPCE24VWFF0 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*16809	WCI 9960005
1	WCI 3017362
2	WCI 8000828
3	WCI 8017562
4	WCI 8017565
5	WCI 8017563
6	WCI 8002777
7	WCI 8000110
8	WCI 8017119
9	WCI 8000296
10	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 8000064
14	CLAMP-CABLE (3)
15	SCREW-TUBE MOUNTING (2)
16	WCI 8017226
17	WCI 8017526
18	WCI 8017231
18	WCI 3001650
19	WCI 8000116
20	WCI 8000117
21	COMPRESSOR W/ ELEC
22	CLIP (4)
23	WASHER (4)
24	WCI 8008778
25A	WCI 8002782
25B	WCI 8002780
25C	SCREW (3)
25	WCI 8017118
26	WCI 8013644
27	WCI 8009640
28	WCI 8009616
29	WCI 3015098
30	CLIP-OVERLOAD
