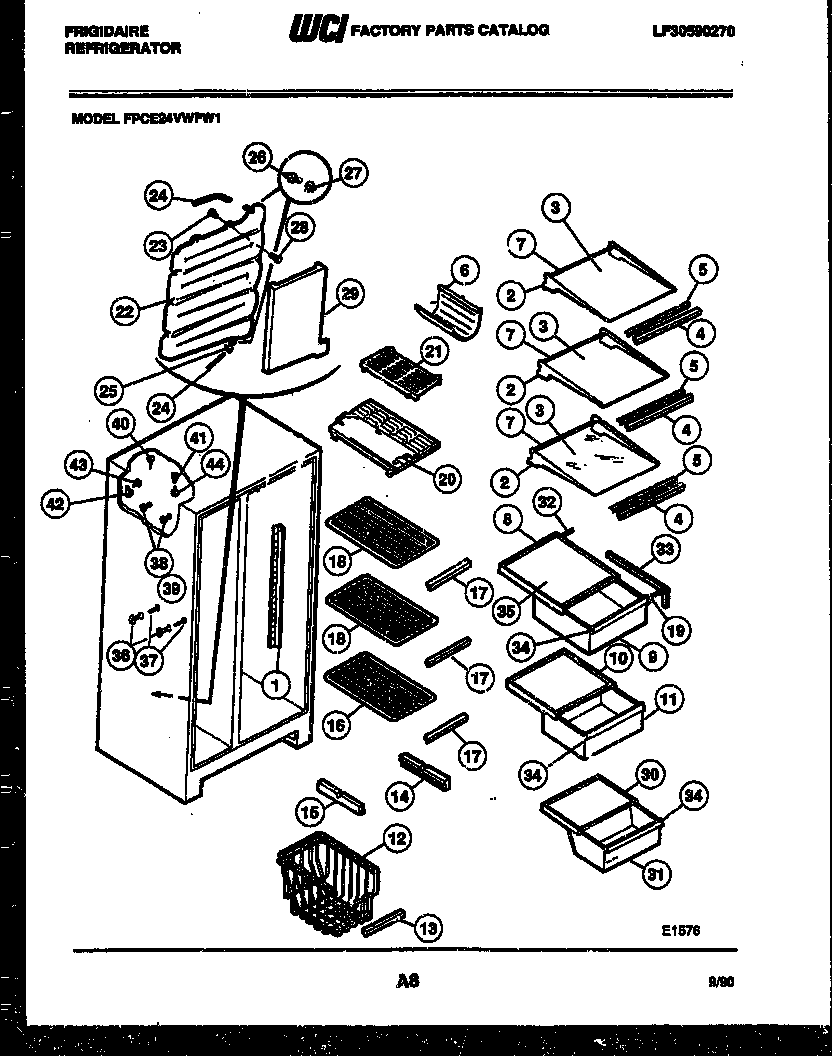

FPCE24VWFH1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*36997WCI 5303200580
1ASCREW-HINGE MTG (2) (NON-ILLUSTRATED)
1CHANNEL-SHELF MTG (2)
2FRAME-SHELF (3)
3WCI 5303211091
4WCI 3200685
5RETAINER-GLASS (3) (NON-ILLUSTRATED)
6RACK-WINE
7TRIM-REFR SHELF, SNAP-ON, REAR, (3)
8ATRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED)
8COVER-CRISPER PAN, UPPER
9WCI 3200690
10COVER-CRISPER PAN, MIDDLE
10AGASKET-CRISPER COVER
11WCI 3200687
12WCI 5308001015
13WCI 3200729
14WCI 5303001098
15WCI 5303001099
16WCI 08001031
17TRIM-HALF SHELF (2)
18SHELF-FREEZER, (3)
19SCREW (6)
20SHELF-FREEZER
20ALABEL-LOWER SHELF (NON-ILLUSTRATED)
21SHELF-FREEZER (UPPER)
21AWCI 08010356
22WATER TANK
23SUPPORT-TANK (3)
245308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25WCI 5303208142
26CONNECTOR – TUBE
27WCI 5308015613
28131420300 Frigidaire Screw
29WCI 5308010332
30WCI 3200663
31WCI 3200688
32WCI 5308009648
33ASUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED)
33B5304509705 Frigidaire Refrigerator Grommet
33SUPPORT-CRISPER CVR, RH
34WCI 3200544
35WCI 5303209966
36SUPPORT-SHELF (2)
37SCREW (2)
38WCI 5303001291
39SCREW (2)
40SUPPORT-SPEC BARREL (2)
41SUPPORT-ICE ACCESS DR
425308000133 Frigidaire Refrigerator Clamp
435304455650 Frigidaire Refrigerator Screw
44SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
