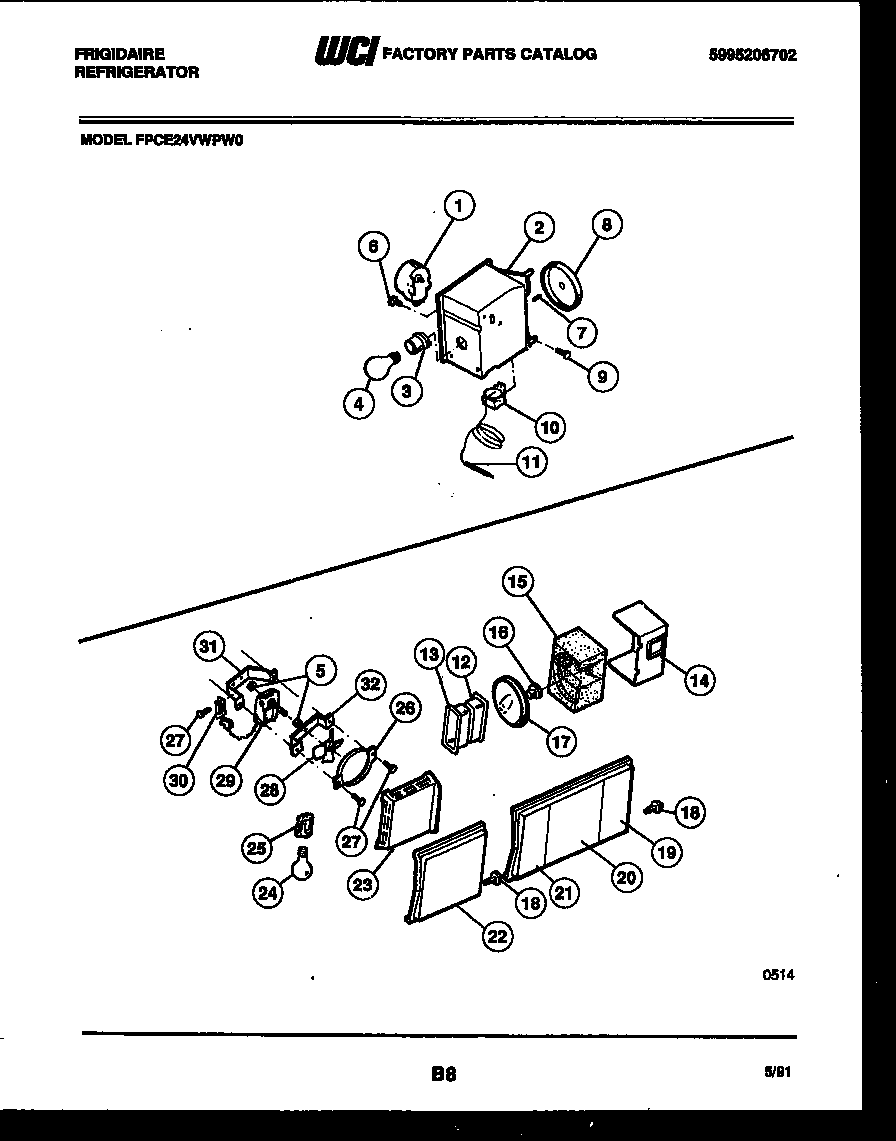

FPCE24VWPL0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*46293	WCI 5303015098
*46293	5304455651 Frigidaire Refrigerator Screw
*46293	WCI 5308000808
*46293	WCI 5308000809
*46293	HOLDER-CABLE
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 5308017561
2A	WCI 3001269
3	SOCKET-LIGHT/LAMP
5	G187559 Frigidaire Refrigerator Bushing
6	5304455852 Frigidaire Refrigerator Screw
7	WCI 5303001260
8	WCI 5308010380
9	5304455649 Frigidaire Refrigerator Screw
10	WCI 5308000068
11	TUBE
12	WCI 5303001276
13A	WCI 5303001280
13	WCI 5303001277
14	WCI 5303211383
15	WCI 5308000771
16	WCI 5300185373
17	WCI 5308010379
18	WCI 5303001213
19	LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20	SHIELD-LIGHT, REFRIGERATOR
21	LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22	WCI 08010364
23	WCI 5308015764
24	316538904 Frigidaire Oven Lamp Light
25	218906802 Frigidaire Light Lamp Socket
26	RING-FAN ORIFICE
27	131420300 Frigidaire Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
28A	WASHER-NYLON,3/16 X 5/8 OD
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 5308000107
31	BRACKET-MOTOR MTG, REAR
32	WCI 5303205118
