FPCE24VWPW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FPCE24VWPW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

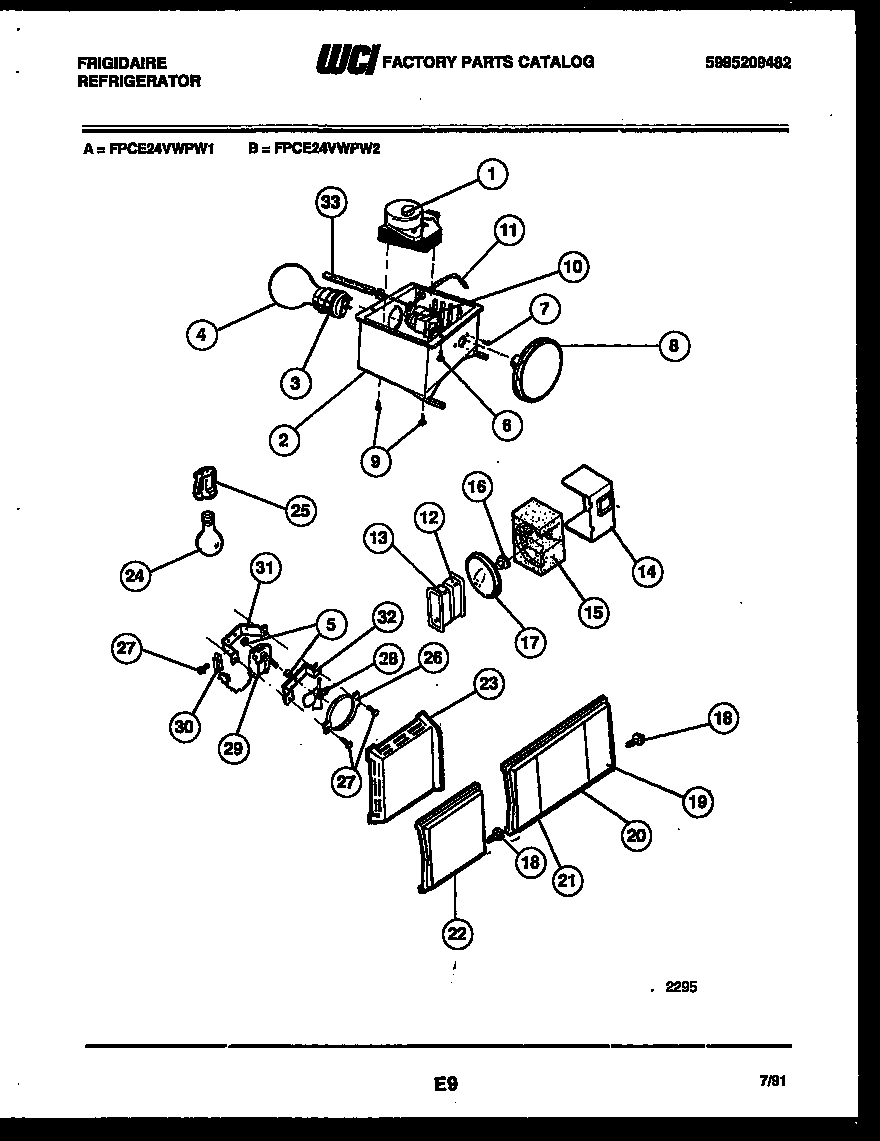

FPCE24VWPW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*48679WCI 5303015098
*486795304455651 Frigidaire Refrigerator Screw
*48679WCI 5308000808
*48679WCI 5308000809
*48679HOLDER-CABLE
1215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2WCI 5308017561
2AWCI 3001269
3SOCKET-LIGHT/LAMP
5G187559 Frigidaire Refrigerator Bushing
65304455852 Frigidaire Refrigerator Screw
7WCI 5303001260
8WCI 5308010380
95304455649 Frigidaire Refrigerator Screw
10WCI 5308000068
11TUBE
12WCI 5303001276
13AWCI 5303001280
13WCI 5303001277
14WCI 5303211383
15WCI 5308000771
16WCI 5300185373
17WCI 5308010379
18WCI 5303001213
19LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20SHIELD-LIGHT, REFRIGERATOR
21LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22WCI 08010364
23WCI 5308015764
24316538904 Frigidaire Oven Lamp Light
25218906802 Frigidaire Light Lamp Socket
26RING-FAN ORIFICE
27131420300 Frigidaire Screw
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
28AWASHER-NYLON,3/16 X 5/8 OD
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5308000107
31BRACKET-MOTOR MTG, REAR
32WCI 5303205118
