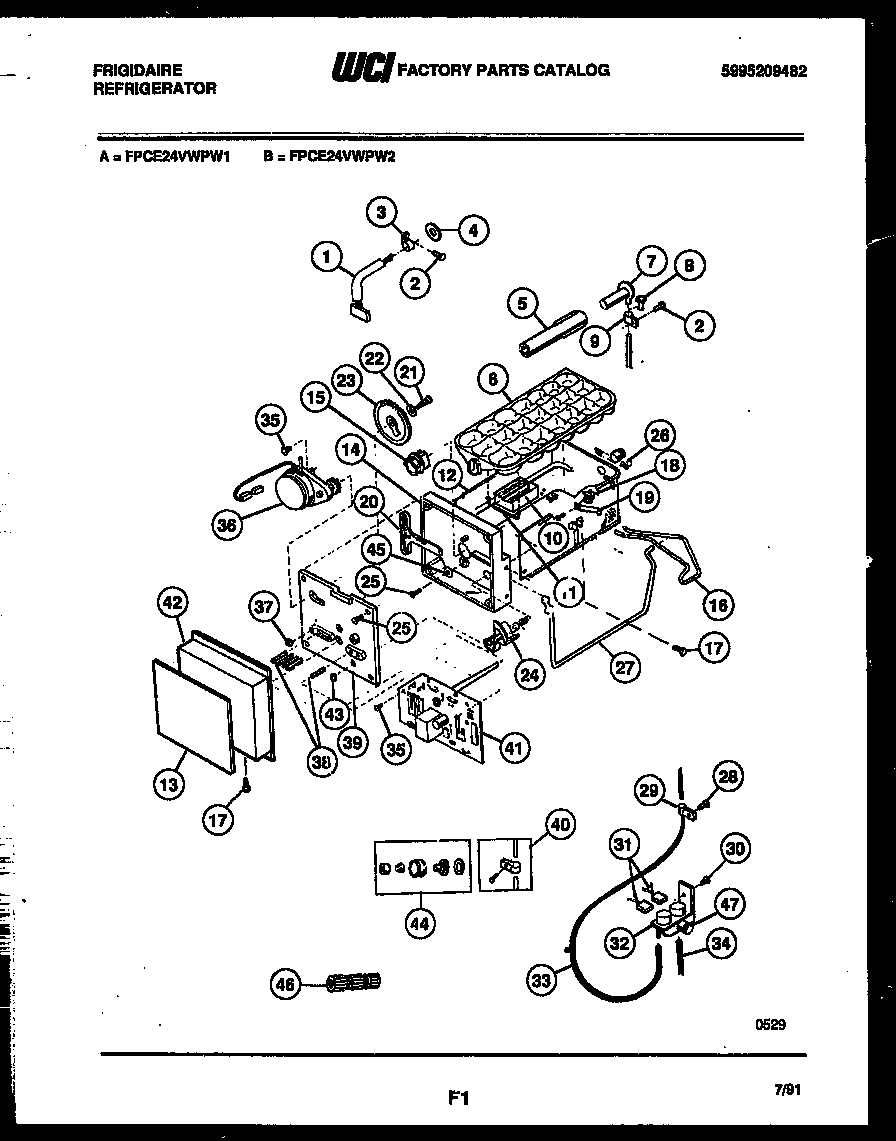

FPCE24VWPW2 09 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
*48685	BEARING-GAUGE ARM
*48686	WASHER-NYLON,3/16 X 5/8 OD
*48686	WCI 5308012818
*48686	WCI 5308012819
*48686	WCI 5303001139
*48685	WCI 5300618683
*48686	WCI 5300175135
1	WIRING HARNESS-ICE MAKER (UPPER)
4	5303001147 Frigidaire Refrigerator Plug-Harness Hole
5	WCI 5308015765
6	ICE TRAY
7	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI 5303001191
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI 5303001141
11	WCI 5301138379
12	WCI 5301138166
13	WCI 08010354
14	HOUSING-ICE MAKER
15	WCI 5301124972
16A	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
16	WIRE-SHUT OFF
17	WCI 5303001020
18	PUSHNUT
18A	SCREW - TRANSFORMER (2) (NON-ILLUSTRATED)
19	SPRING-TRAY
20	WCI 5303001136
21	WCI 5303001119
22	WCI 5303001117
23	WCI 5301124984
24	WCI 5301124983
25	SCREW (5)
26	WCI 5303001132
27A	RETAINING RING (NON-ILLUSTRATED)
27	SENSING ARM
28	5304455651 Frigidaire Refrigerator Screw
29	5308000133 Frigidaire Refrigerator Clamp
31	WIRING HARNESS-ICE & WATER (LOWER)
32	WATER VALVE SOLENOID
34	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
35	SCREW (5)
36	WCI 5301124982
37	NUT - HEX 10-32 LH
38	FOLLOWER-CAM (PIN)
39	PLATE-MOUNTING
40A	5308000039 Frigidaire Refrigerator Screw
40	5304455846 Frigidaire Refrigerator Clamp
41	PRINTED CIRCUIT BOARD
42	WCI 3017845
43	RETAINING RING
44	ADAPTER-WATER SPLY
45	WASHER
46	WCI 5300158163
47	CAP-WATER VALVE (NON-ILLUSTRATED)
