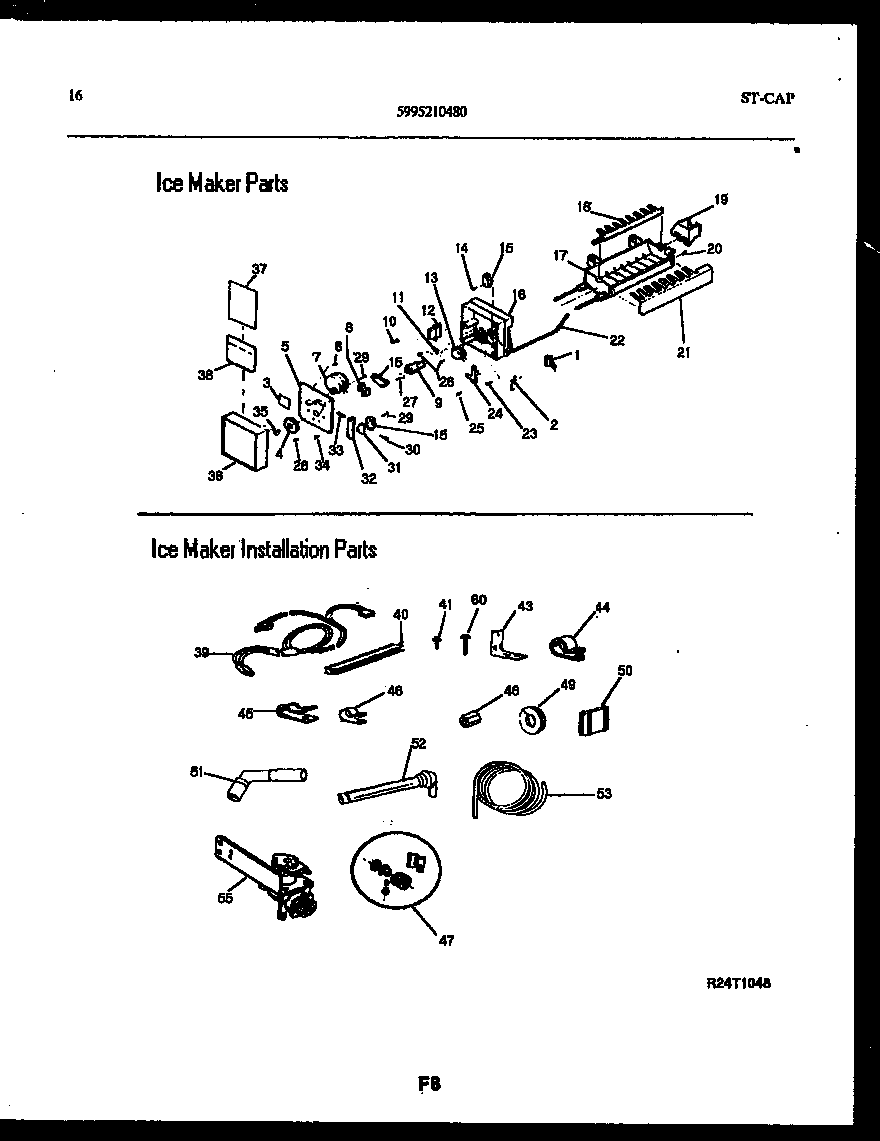

FPCEW21TIRW1 09 – ICE MAKER AND INSTALLATION PARTS

FPCEW21TIRW1 09 – ICE MAKER AND INSTALLATION PARTS

Written by

in

FPCEW21TIRW1 09 – ICE MAKER AND INSTALLATION PARTS

Products

PositionProduct
*55801WCI 5303276858
*55801WCI 5303001191
405305877995 Frigidaire Refrigerator P-1 Sealing Strip
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455846 Frigidaire Refrigerator Clamp
465303001193 Frigidaire Refrigerator Clamp
47ADAPTER-WATER SPLY
48NUT, 7/16 X 20, NYLON
505303001147 Frigidaire Refrigerator Plug-Harness Hole
51EXTENSION-INLET TUBE, S X S & SD ONLY
52215456100 Frigidaire Refrigerator Water Inlet Tube
535308010366 Frigidaire Refrigerator P1-Water Inlet Tube
55VALVE-WATER
55ACAP-WATER VALVE (NON-ILLUSTRATED)
605304455852 Frigidaire Refrigerator Screw
