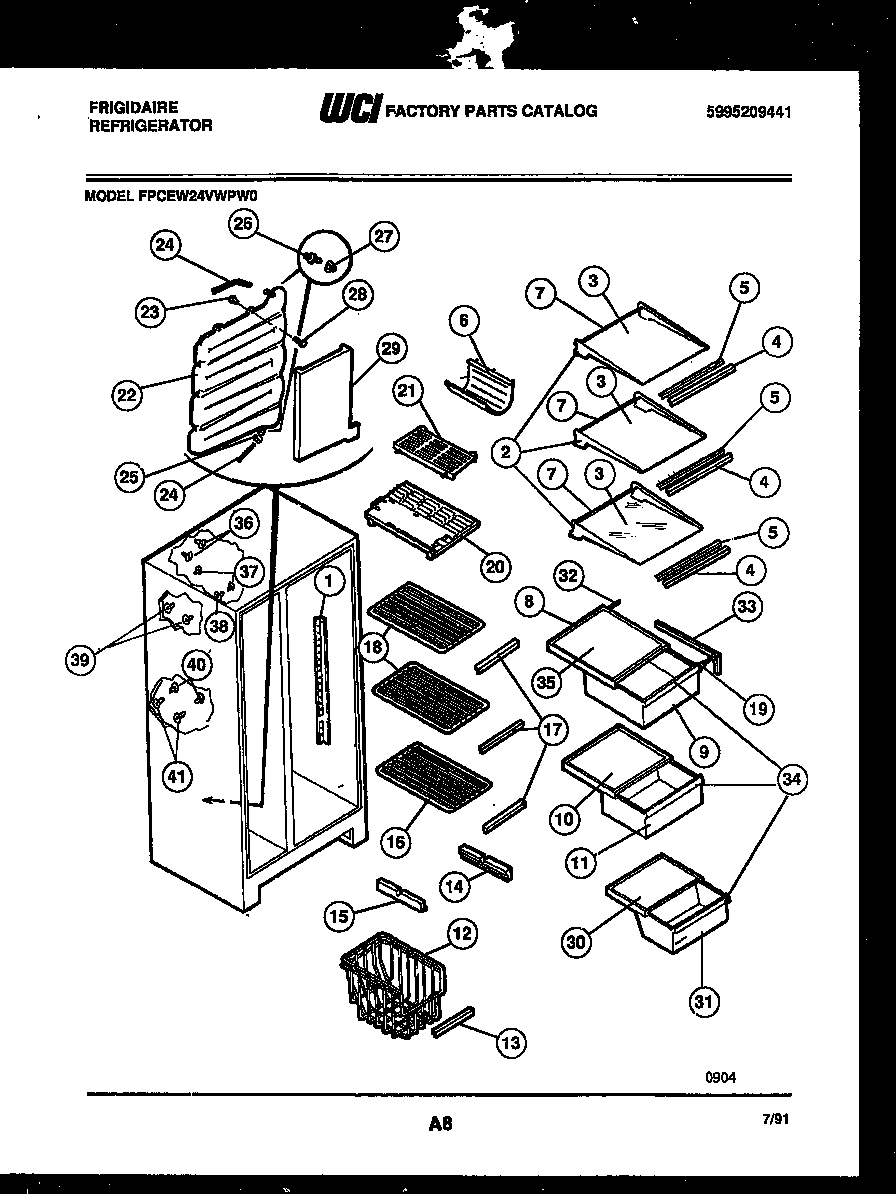

FPCEW24VWPW0 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	CHANNEL-SHELF MTG (2)
2	FRAME-SHELF (3)
3	SHELF-GLASS, REFR SHELF, (3)
4	TRIM-REFR SHELF, (3)
5	RETAINER-GLASS (3) (NON-ILLUSTRATED)
6	WCI 5303206667
7	TRIM-REFR SHELF, SNAP-ON, REAR, (3)
8	WCI 5303206938
9	WCI 5303206945
10A	GASKET-CRISPER COVER
10	COVER-CRISPER PAN, MIDDLE
11	WCI 5303206926
12A	WCI 5308001015
12	WCI 5303206947
13	TRIM-BASKET, (3)
14	WCI 5303001098
15A	5304455650 Frigidaire Refrigerator Screw
15	WCI 5303001099
16	WCI 08001031
17	TRIM-FRZR SHELF, (3)
18	SHELF-FREEZER, (3)
19	5304455852 Frigidaire Refrigerator Screw
20	SHELF-FREEZER
20A	LABEL-LOWER SHELF (NON-ILLUSTRATED)
21A	WCI 08010356
21	SHELF-FREEZER (UPPER)
22	WCI R000900930
23	SUPPORT-TANK (3)
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	WCI 5303208142
26	CONNECTOR – TUBE
27	GROMMET-TANK
28	131420300 Frigidaire Screw
29	WCI 5308010332
30	WCI 5316972401
31	WCI 5303206940
32	WCI 5308009648
32A	TRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED)
33	SUPPORT-CRISPER CVR, RH
33A	SUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED)
33B	5304509705 Frigidaire Refrigerator Grommet
34	WCI 5303206927
35	WCI 5303206939
35A	WCI 5303206670
36	SUPPORT-SPEC BARREL (2)
37	SUPPORT-ICE ACCESS DR
38	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
39A	SCREW (2)
39	WCI 5303001291
40	SCREW (2)
41	SUPPORT-SHELF (2)
