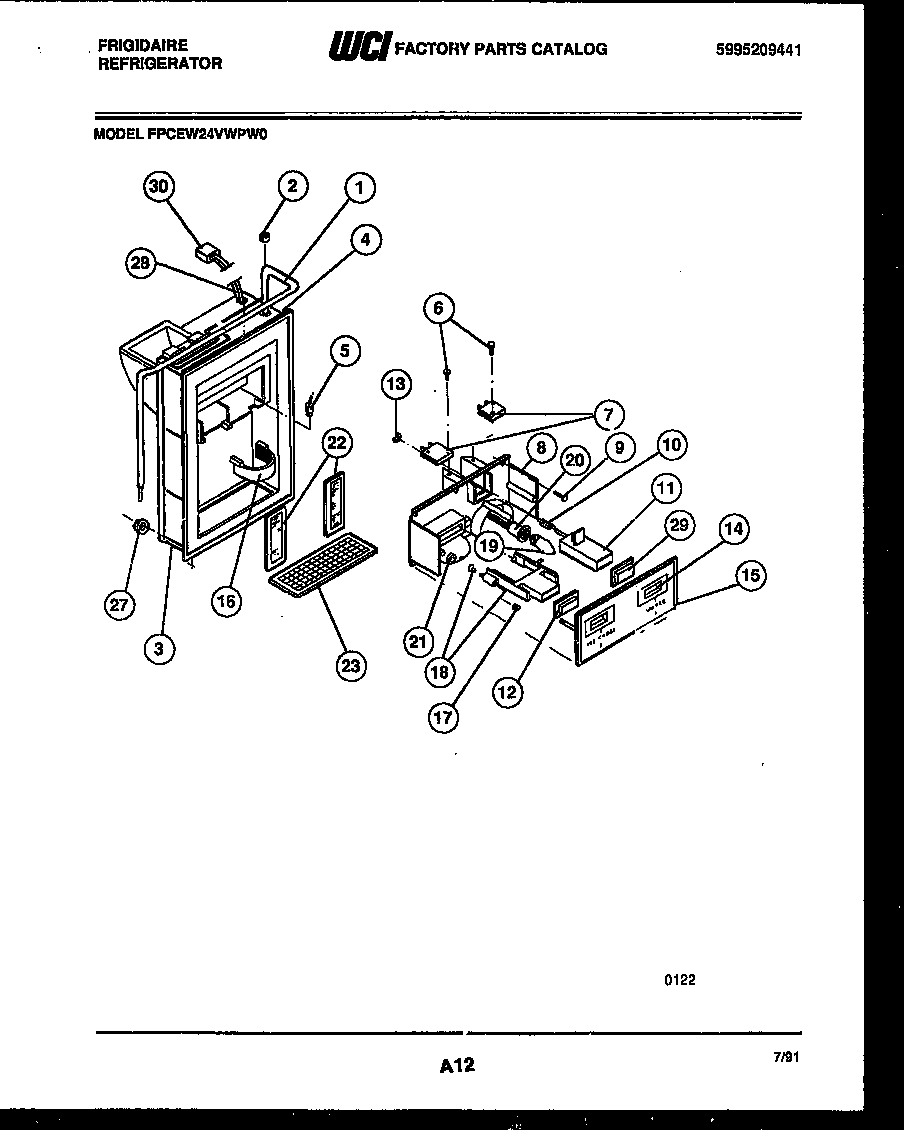

FPCEW24VWPW0 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4HOUSING-FRZR DR PNL
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12WCI 5308012816
13WCI 5302832214
14WCI 5303206952
15WCI 5303206951
16WCI 5303205864
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20SOCKET-LIGHT BULB
21WCI 5303001074
22LABEL-FILL PADS, (2)
23WCI 5303015823
27NUT, SELF-THREADING, 1/8
28WCI 5303001082
28AWCI 5318653301
29WCI 5308012815
30PLUG-HARNESS BOTTOM
