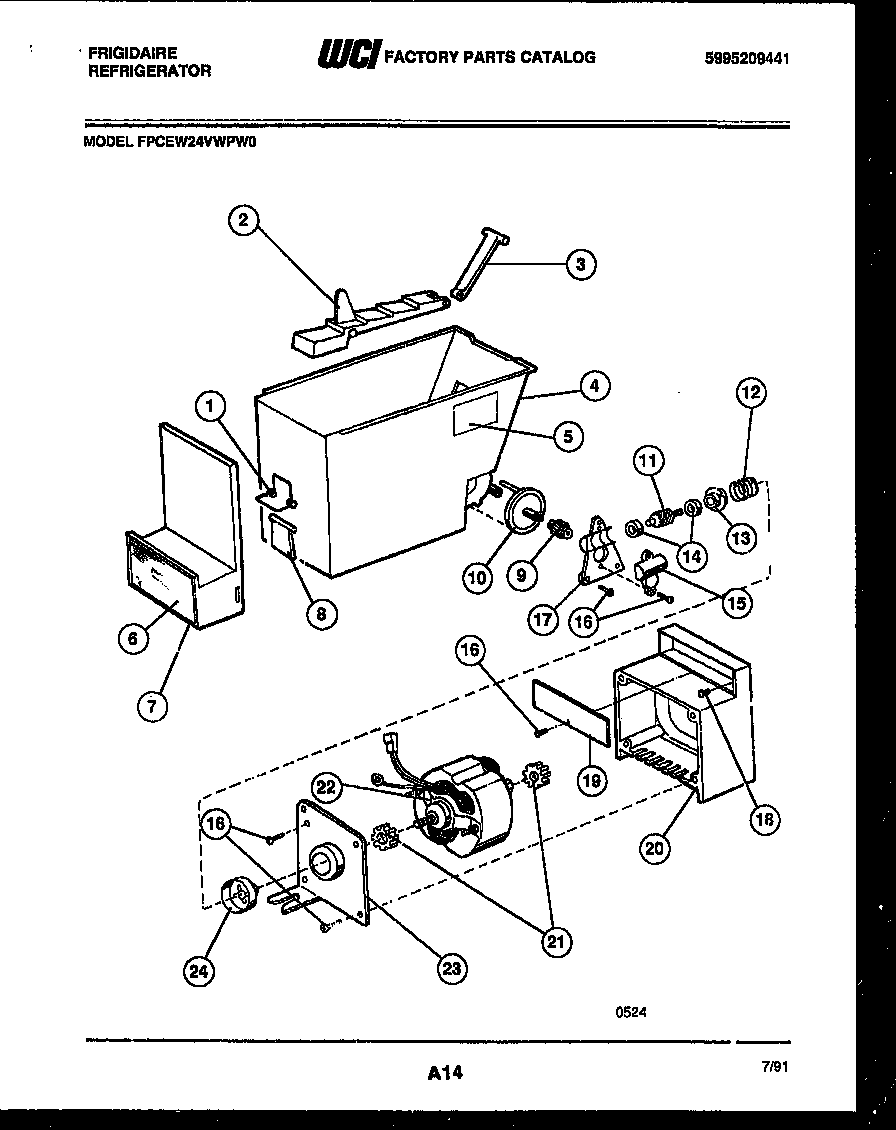

FPCEW24VWPW0 08 – ICE DISPENSER

Products

PositionProduct
1SPRING-ICE DOOR
2WCI 5301123547
3WCI 5303205890
4WCI 5301138760
5LABEL-ICE DISPENSER
6WCI 5303206959
7WCI 5303015828
8WCI 5317440701
9WORM GEAR-ICE RAM
10WCI 5301123568
11WORM-ICE RAM
12WCI 5301123767
13COUPLING-ICE DISP CONTAINER
14WCI 5301123508
15COVER-HOUSING ICE RAM
17WCI 5300174408
185304455650 Frigidaire Refrigerator Screw
19COVER-ICE DISP MTR
20HOUSING-ICE DISP MTG
21GROMMET-ICE DISP MTR (2)
22WCI 5308017049
23WCI 5303001106
24WCI 5301123771
