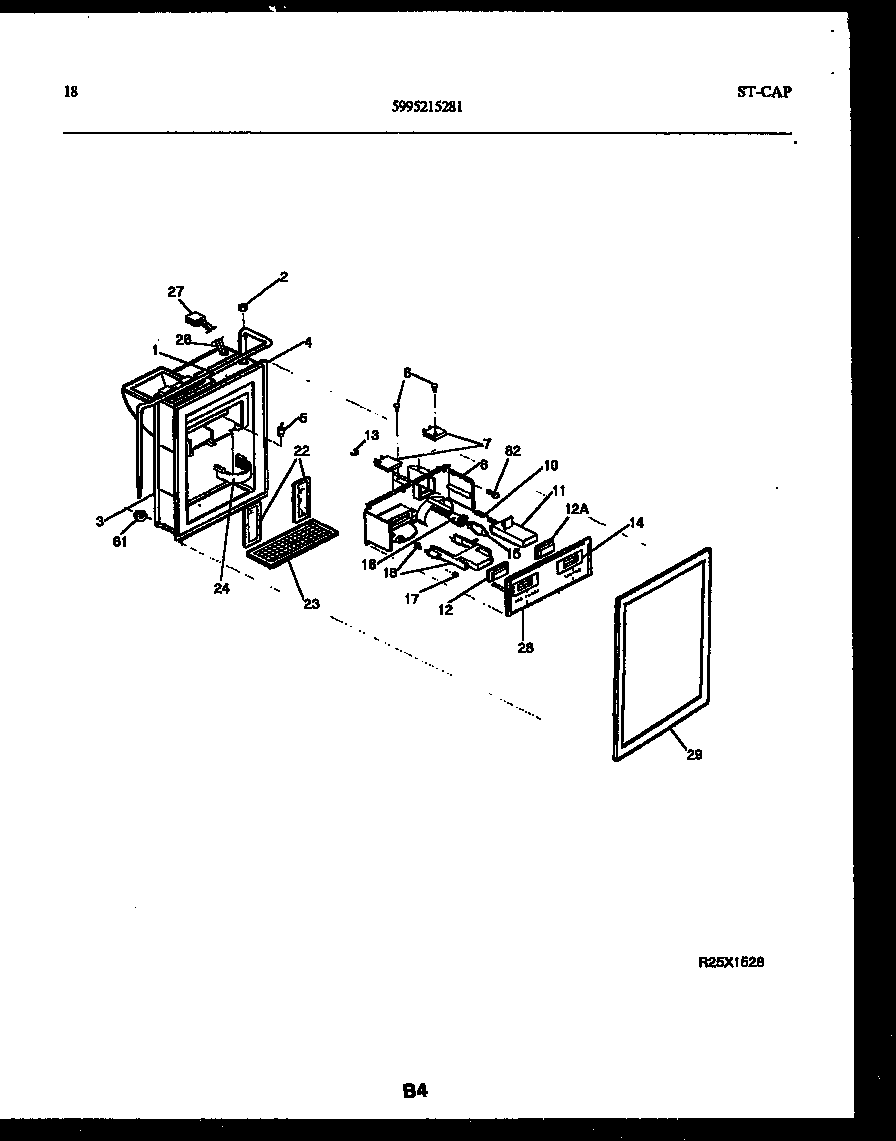

FPCEW24VWPW1 10 – ICE DOOR, DISPENSER AND WATER TANKS

FPCEW24VWPW1 10 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

FPCEW24VWPW1 10 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*56773WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4HOUSING-FRZR DR PNL
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
10SPRING-WATER ACTUATOR
11WCI 5303001077
12WCI 5308012816
12AWCI 5308012815
13WCI 5302832214
14WCI 5303206952
15WCI 5304506475
16SOCKET-LIGHT BULB
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
22LABEL-FILL PADS, (2)
23WCI 5303015823
24WCI 5303205864
26WCI 5303001082
27PLUG-HARNESS BOTTOM
28WCI 5303206951
29WCI 5303283312
61NUT, SELF-THREADING, 1/8
82SCREW (4)
