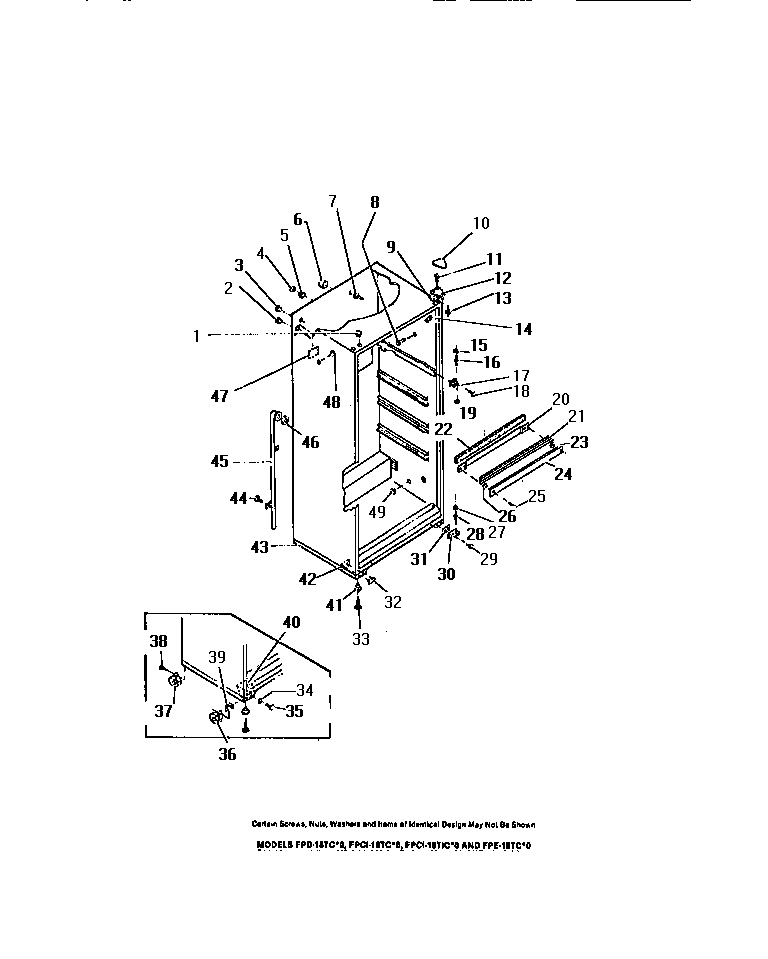

FPCI18TCH0 04 – CABINET

Products

Position	Product
1A	WCI 8007127
2	WCI 8000014
3	WCI 8000040
4	WCI 8006971
5	WCI 8006970
6	WCI 8000004
7	WCI 8000097
8A	WCI 8002747
8	WCI 8009759
9	WCI 8012829
10A	COVER-HNG-WEAT
11	SCREW-HINGE MOUNTING (2)
12	WCI 8012843
14A	WCI 8010016
16	WCI 8000184
17	WCI 8000757
19	WASHER-5/16 NYLON
20	WCI 8010008
21	WCI 8000058
22	WCI 8009638
23	WCI 8003607
24A	WCI 8010027
25	SCREW-HINGE/MULLION (4)
26	WCI 8010007
27	WASHER-1/4 NYLON (3)
28	PIN-LOWER HINGE
29	SCREW-HINGE MOUNTING
30	BRACKET-HNG
31	SHIM-LOWER HINGE
32	WCI 8003585
33	SCREWS LEVELING (4)
34	WCI 8011326
35	WCI 8009761
36	WCI 8009760
37	WCI 8009773
38	WCI 8009762
39	WCI 8009790
40	WCI 8013678
41	WCI 8003584
42	PLATE-TAPPING (2)
43	WCI 8010092
44	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
45	WCI 8010012
46	WCI 8009755
47	WCI 8000082
47A	WCI 8013636
48	BTN-PLUG (5)
49	PLUG-REFRIGERATOR LINER (2)
