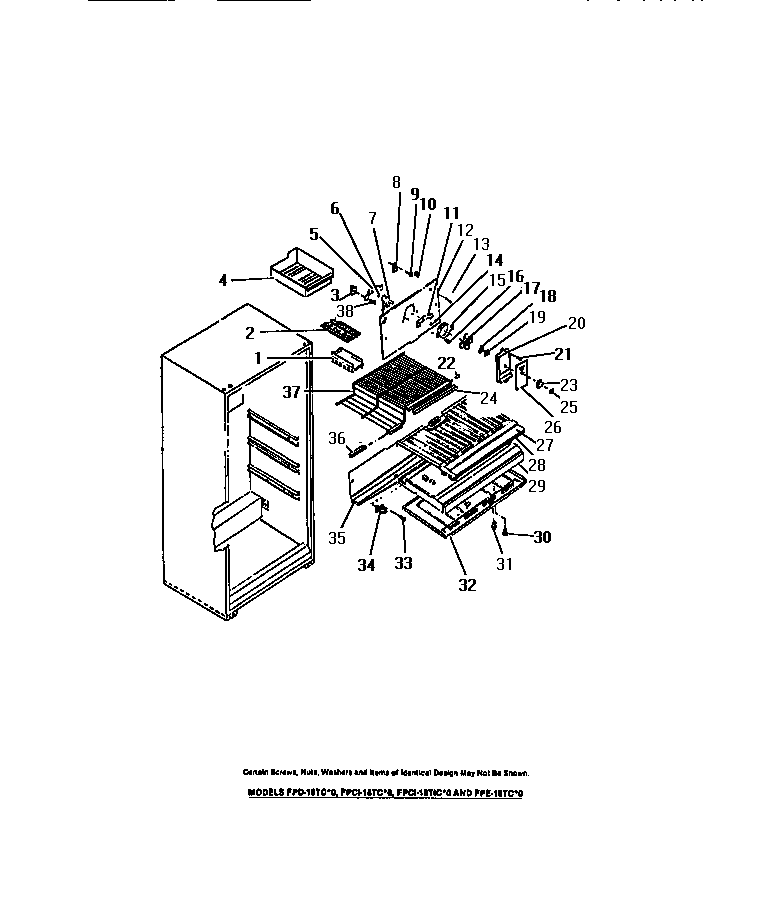

FPCI18TCH0 10 – INTERIOR FREEZER COMPARTMENT

FPCI18TCH0 10 – INTERIOR FREEZER COMPARTMENT

Written by

in

FPCI18TCH0 10 – INTERIOR FREEZER COMPARTMENT

Products

Position	Product
1	WCI 8009824
2	WCI 1121808
3	WCI 8000107
4	ICE, CONTAINER
5	WCI 8000042
7	WCI 8004176
8	WCI 8000221
10	WCI 8000012
11	WCI 8000043
12	WCI 8009771
13	SCREW (5)
14	WCI 8000032
15	WCI 8000124
17	WCI 8000010
18	WCI 8000066
19	WCI 8000067
20A	WCI 8009817
20	WCI 8009821
22	WCI 8013638
23	WCI 8009793
24	TRIM, SHELF
25	WCI 8009823
26	LABEL-FAN COVER
27	WCI 8015543
28	INSULATION-EVAPORATOR
29	WCI 8009751
30	SCREW-TOP MOUNTING (3)
31	SWITCH, LIGHT
32	WCI 8010001
33	WCI 8013647
35	WCI 8009772
36	TRIM-SHELF
37	SHELF-FREEZER
38	WCI 8000098
