FPCI18TCH0 13 – FOOD AND FREEZER DOORS

FPCI18TCH0 13 – FOOD AND FREEZER DOORS

Written by

in

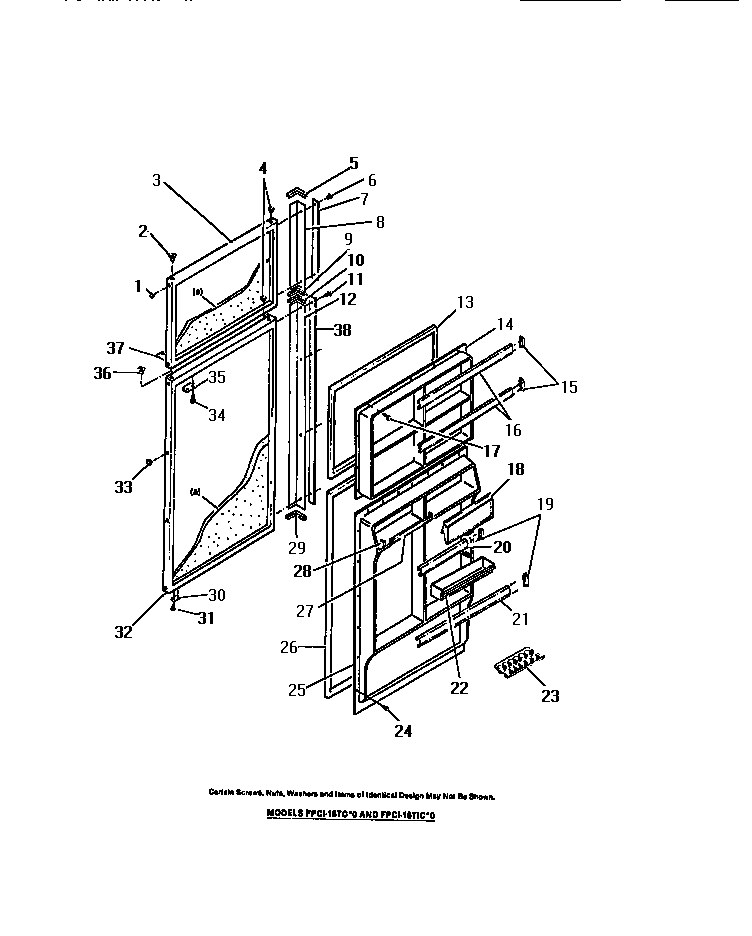

FPCI18TCH0 13 – FOOD AND FREEZER DOORS

Products

PositionProduct
*00124WCI 8009634
3AWCI 8009932
4APLUG-HINGE, WHEAT
7WCI 8010232
8HANDLE ASSY W/ CAP & TRIM
10END CAP-TOP (2)
12HANDLE ASSY W/ CAP & TRIM
13WCI 8009734
14INNER PANEL-FREEZER
18DAIRY DOOR
19SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
19ASUPPORT-RACK RS (2)
20DOOR RACK-CENTER
21DOOR RACK-BOTTOM
22UTILITY BIN
23EGG TRAY
24SCREW-PANEL MOUNTING (56)
25INNER PANEL-REFR
26WCI 8009735
27DOOR RACK-TOP
28ASUPPORT-RACK RS
28SUPPORT-RACK LS (NON-ILLUSTRATED)
29END CAP-BOTTOM (2)
32AWCI 8009929
33APLUG-HANDLE, WHEAT
34SCREW-HANDLE MOUNTING (4)
35WCI 8000255
36HINGE BEARING (8)
37WCI 8009843
38WCI 8010233
