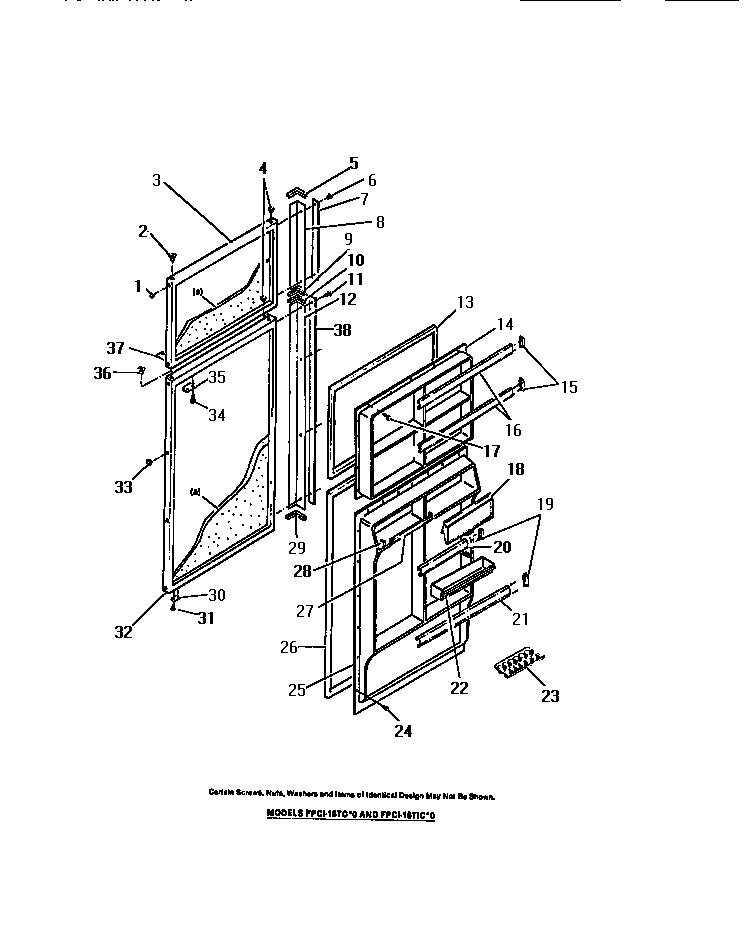

FPCI18TCL0 13 – FOOD AND FREEZER DOORS

Products

PositionProduct
*00125WCI 8009636
3BWCI 8009933
4BPLUG-HINGE, ALMOND
7WCI 8010232
8HANDLE ASSY W/ CAP & TRIM
10END CAP-TOP (2)
12HANDLE ASSY W/ CAP & TRIM
13WCI 8009734
14INNER PANEL-FREEZER
18DAIRY DOOR
19ASUPPORT-RACK RS (2)
19SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
20DOOR RACK-CENTER
21DOOR RACK-BOTTOM
22UTILITY BIN
23EGG TRAY
24SCREW-PANEL MOUNTING (56)
25INNER PANEL-REFR
26WCI 8009735
27DOOR RACK-TOP
28ASUPPORT-RACK RS
28SUPPORT-RACK LS (NON-ILLUSTRATED)
29END CAP-BOTTOM (2)
32BWCI 8009930
33BPLUG-HANDLE, ALMOND
34SCREW-HANDLE MOUNTING (4)
35WCI 8000255
36HINGE BEARING (8)
37WCI 8009843
38WCI 8010233
