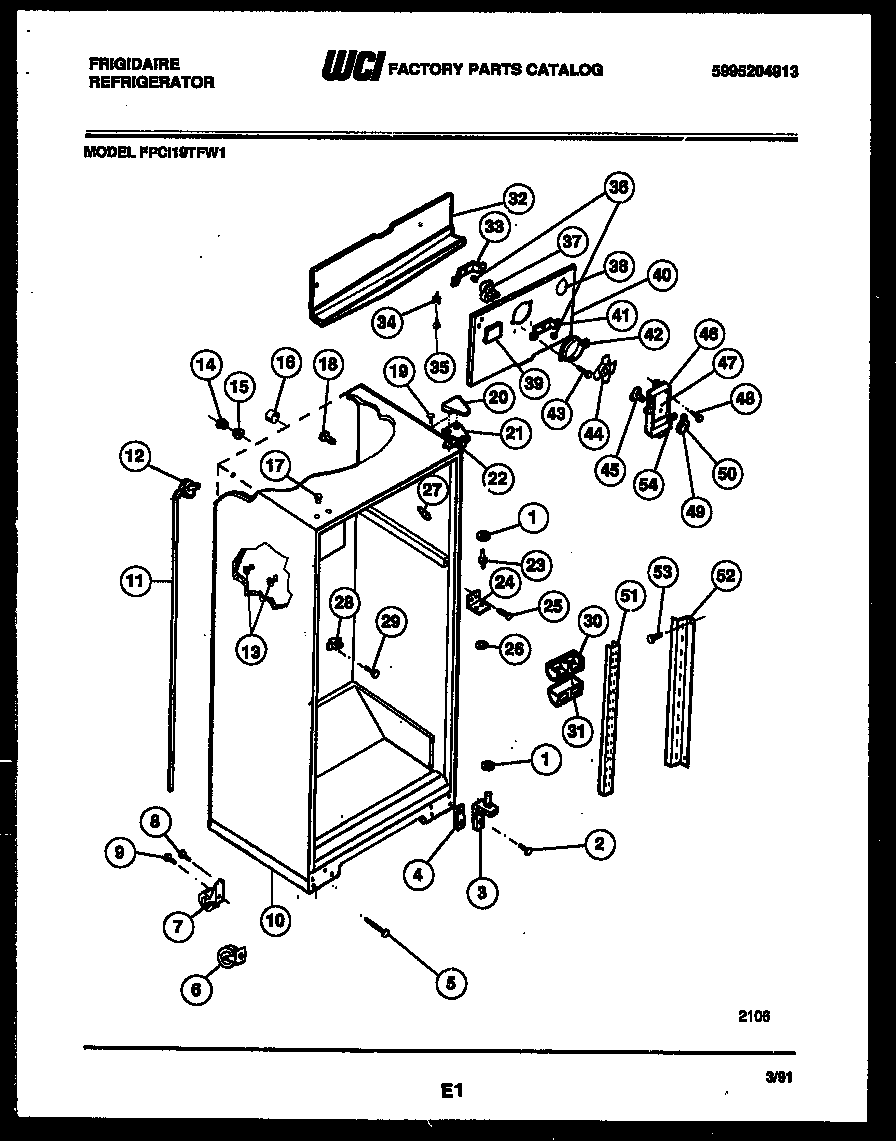

FPCI19TFL1 03 – CABINET PARTS

Products

PositionProduct
*42676TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42676PLUG, BUTTON, CABINET LINER (NI)
*42676WCI 08012329
1WASHER, .34 X .62 X .05, NYLON
2241710601 Frigidaire Refrigerator Screw
3BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
3ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
3BRACKET-LOWER HINGE, W/ HINGE PIN
4WCI 5303212488
5BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
6WCI 5303212490
7WCI 5308009773
85304455651 Frigidaire Refrigerator Screw
9BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
10WCI 5303212487
11WCI 5303210377
12WCI 5303207353
13A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
135304509705 Frigidaire Refrigerator Grommet
14WCI 5303001287
15WCI 5303001286
16TUBE-RUBBER
17PLUG-BUTTON, ALMOND, UPR HINGE HOLES
18SUPPORT-COIL COVER
20COVER-UPPER HINGE, ALMOND
21BRACKET-UPPER HINGE
22SHIM – UPPER HINGE
23WCI 5308000184
24BRACKET-CTR HINGE
25WCI 5308012258
26WCI 5308000186
27TRIM-CABINET CORNER, ALMOND
28WCI 5308000056
29WCI 5303001361
30DEFLECTRO, AIR, W/SEAL
31AEXTENSION, AIR DEFLECTOR, WITH INSULATION
31WCI 5303001448
32WCI 5303001470
33BRACKET-MOTOR MTG, REAR
34WCI 5308000107
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
385303208309 Frigidaire Refrigerator Plug Hole
39BUTTON – DECORATIVE PLUG
40WCI 5308009771
40ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41WCI 5303205118
42RING-FAN ORIFICE
445308000010 Frigidaire Refrigerator Evaporator Fan Blade
45DAMPER-FAN COVER
46FAN COVER
47WCI 08009822
485304455650 Frigidaire Refrigerator Screw
49KNOB, DAMPER
50LABEL, KNOB
51AWCI 5308016568
51WCI 5303015409
52CHANNEL, RH & LH
535304455852 Frigidaire Refrigerator Screw
54Nut,push-on
