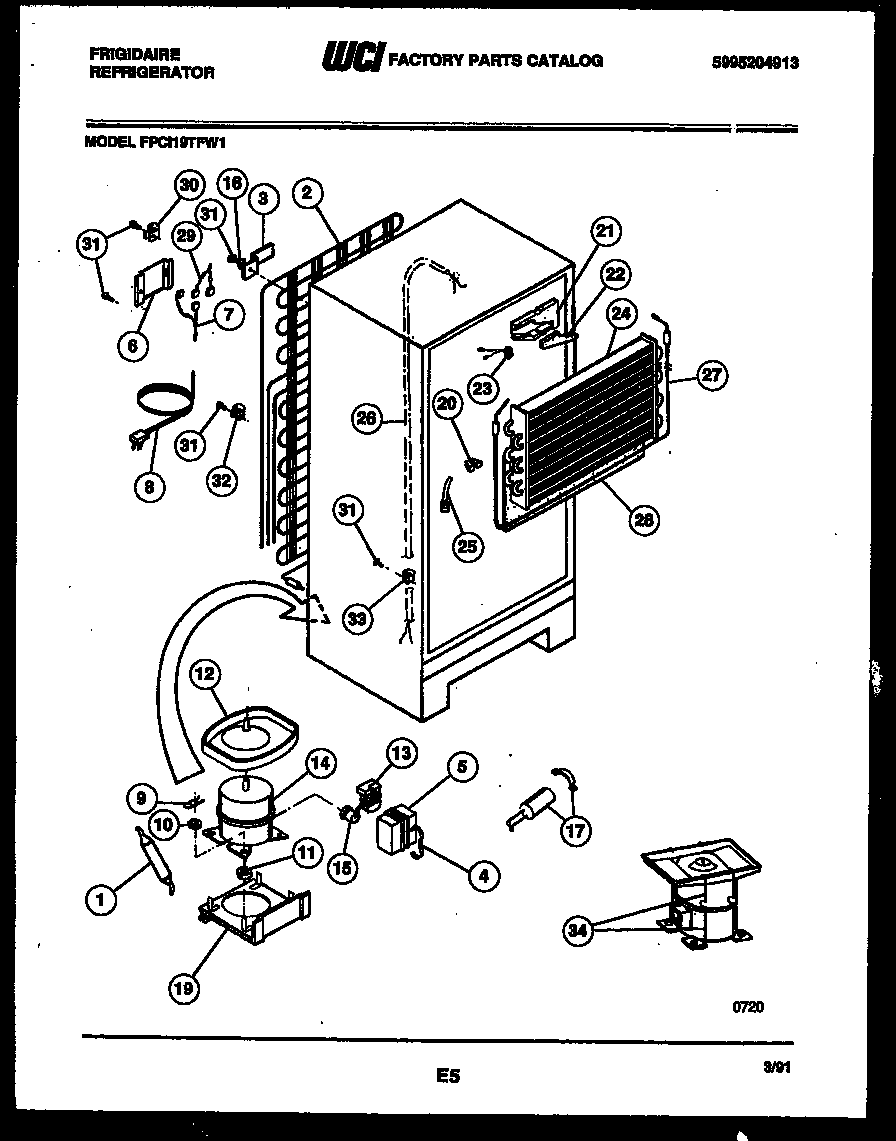

FPCI19TFL1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCI19TFL1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCI19TFL1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*426835303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*42683HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12ANut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELEC
15WCI 5303272031
16WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
17CAPACITOR
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29WCI 3018900
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
335308000133 Frigidaire Refrigerator Clamp
34PAN RETAINER KIT, SERVICE
