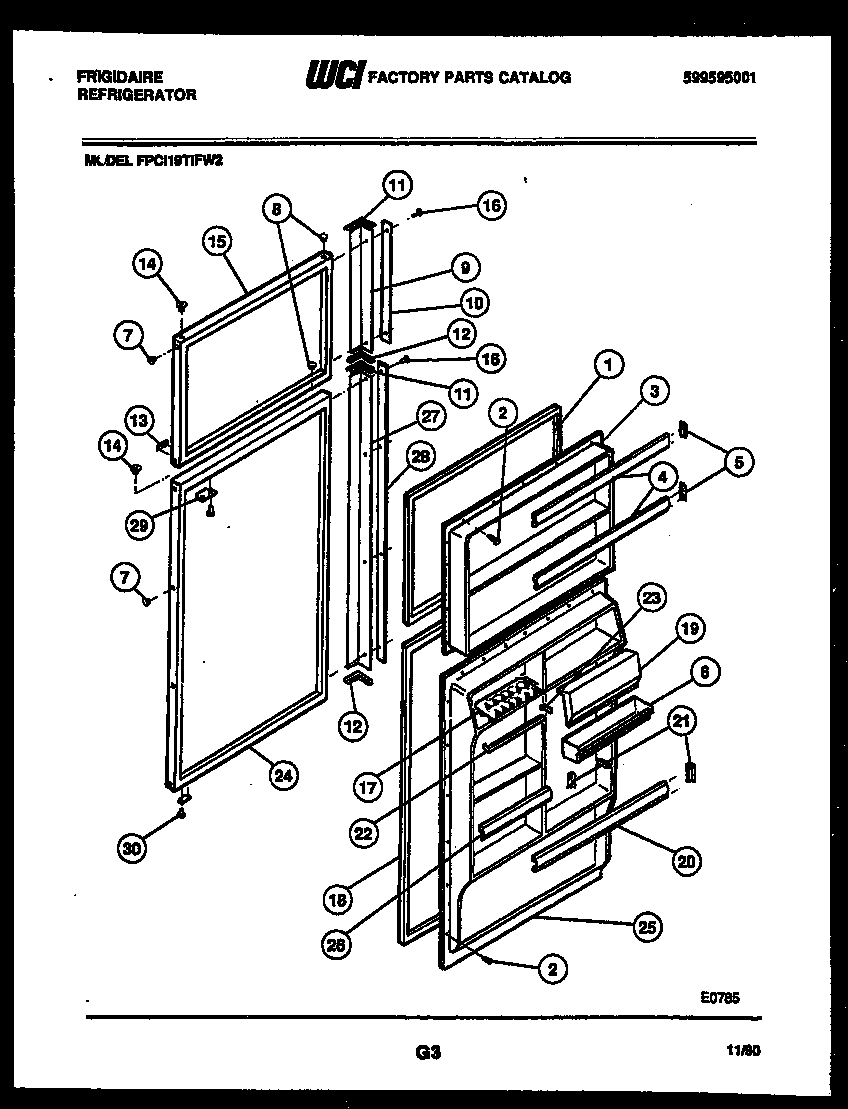

FPCI19TIFH2 02 – DOOR PARTS

FPCI19TIFH2 02 – DOOR PARTS

Written by

in

FPCI19TIFH2 02 – DOOR PARTS

Products

PositionProduct
*38904WCI 5308011745
1GASKET-FRZR DOOR, BROWN, MAGNETIC
3WCI 3018971
4WCI 3018972
6WCI 3018973
7BUTTON-WHEAT
8BUTTON-WHEAT
9HANDLE-COMPLETE
11WCI 08010239
12END CAP-BOTTOM (2)
13NAMEPLATE
14BEARING-HINGE
15WCI 08009932
16SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19DOOR-DAIRY
20215516220 Frigidaire Refrigerator Door Rack
22RACK-REFR DOOR
235303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
23A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24WCI 5308009929
25WCI 3018976
25A218843801 Frigidaire Refrigerator Screw
26A5303325990 Frigidaire Refrigerator Door Bar End Cap
26B5303325991 Frigidaire Refrigerator Door Bar Endcap
27HANDLE-COMPLETE
28BINSULATION-BULK (NON-ILLUSTRATED)
28ASNUGGER-FINGER (NON-ILLUSTRATED)
28WCI 5308010229
29WCI 5308000255
30DOOR STOP, REFR SECTION
