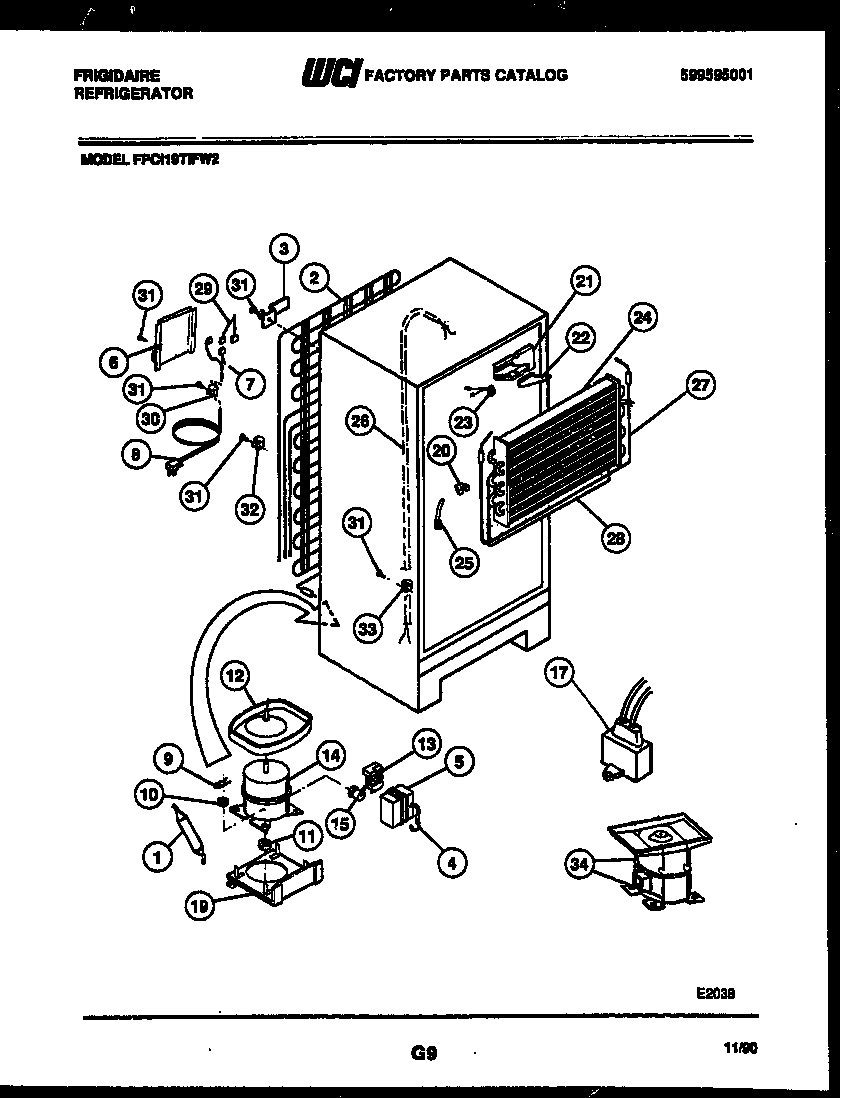

FPCI19TIFH2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCI19TIFH2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCI19TIFH2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*38919HOT TUBE REPAIR KIT-SERVICE
*389195303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANut,lock `1/4-20 ,drain pan mtg
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13RELAY-TL
14COMPRESSOR W/ ELEC
14AWCI 5300179213
15WCI 5303001713
17CAPACITOR
17A5304455651 Frigidaire Refrigerator Screw
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29WCI 3018900
305304455846 Frigidaire Refrigerator Clamp
315308000039 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
335303001193 Frigidaire Refrigerator Clamp
34PAN RETAINER KIT, SERVICE
