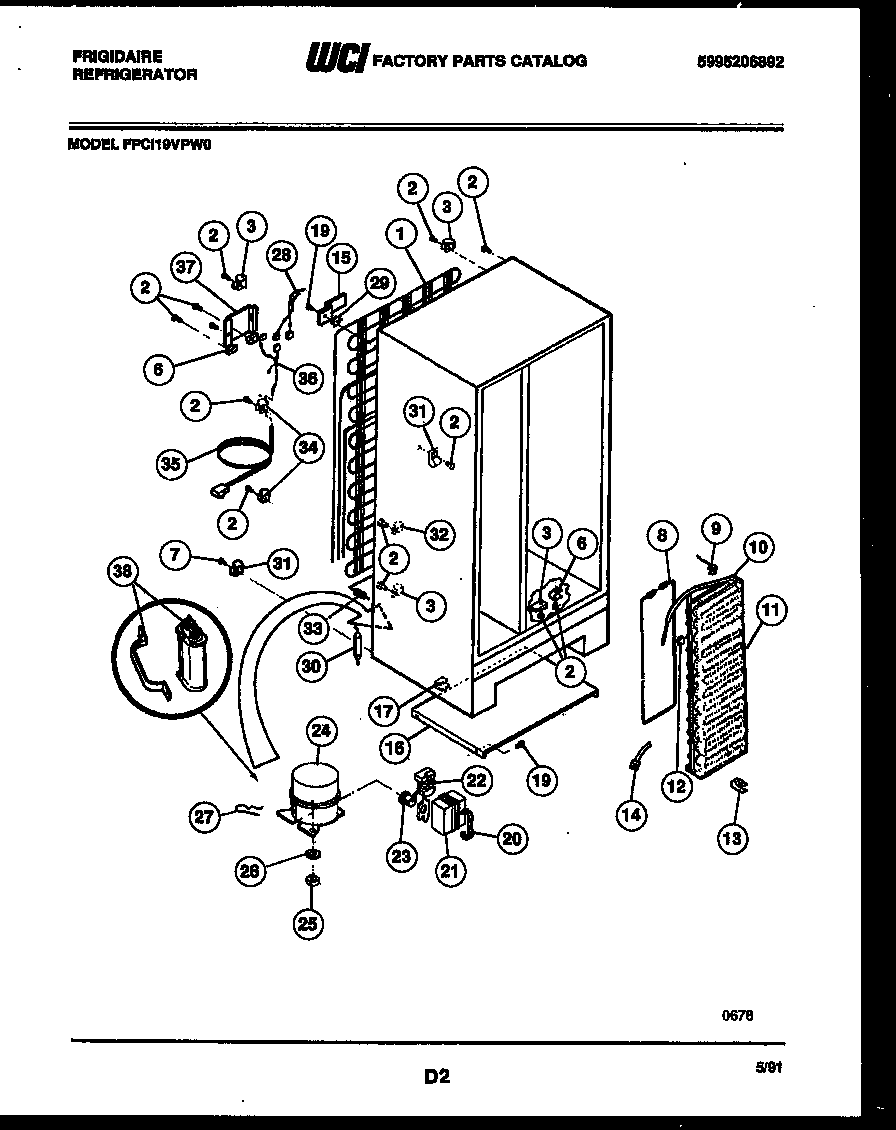

FPCI19VPL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCI19VPL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCI19VPL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5308017228
2WCI 5303001345
3CLAMP-TUBE
8WCI 5303007568
95303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10WCI 5308017565
11AWCI 5303001235
11WCI 5303916605
12WCI 5308000828
13WCI 5308002777
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15BRACKET-MTG (4)
16WCI 5300188724
17WCI 08000099
195308000039 Frigidaire Refrigerator Screw
205303006412 Frigidaire Refrigerator Cover Mounting Strap
20AWCI 5308009619
22RELAY-TL
235303271616 Frigidaire Refrigerator P1-Overload
24WCI 5308950223
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26WASHER-COMPR MTG
27CLIP – COMPRESSOR MTG
28WCI 5303015098
29WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
305303305677 Frigidaire Replacement Filter Dryer Filters
325308000133 Frigidaire Refrigerator Clamp
33SLEEVE-CONNECTOR
345303001199 Frigidaire Refrigerator Wiring Harness Clamp
35CORD-ELECTRIC POWER
36WCI 5308009616
37WCI 5303001197
37AWCI 5300189379
38CAPACITOR
