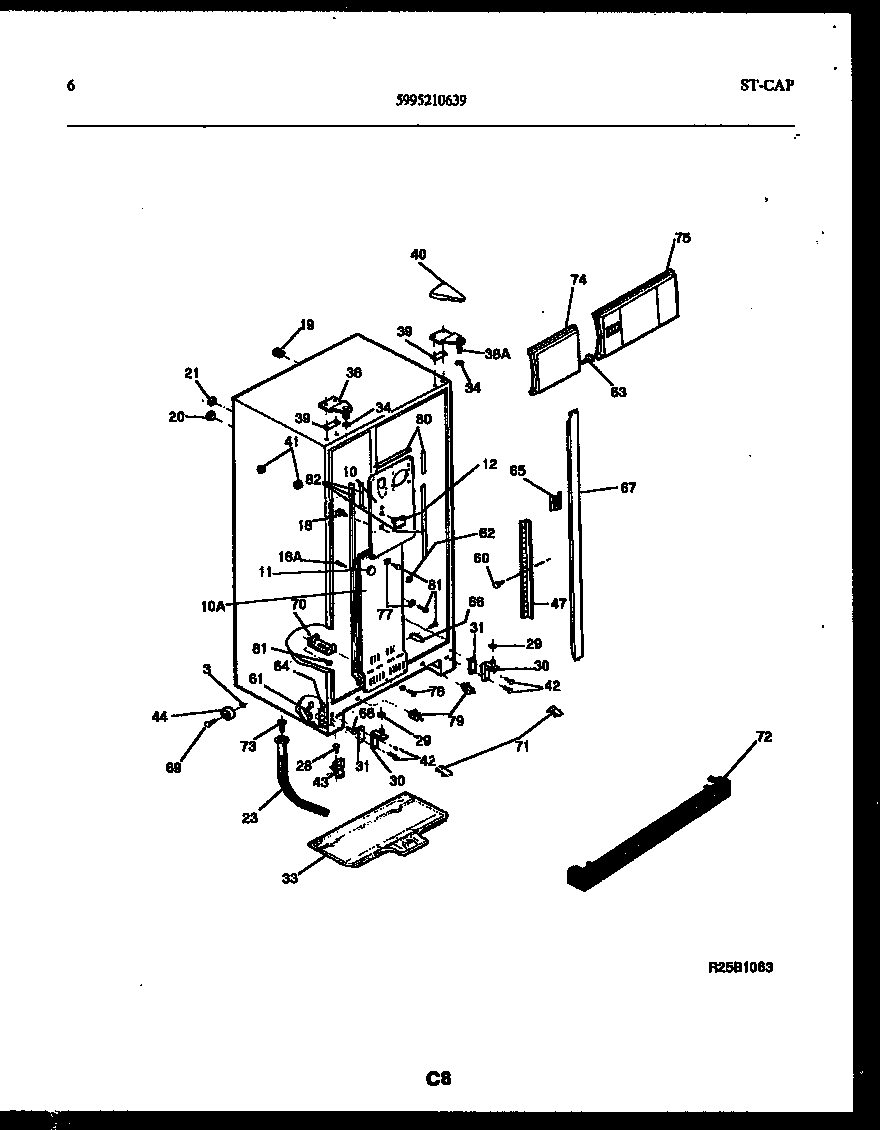

FPCI19VPL1 04 – CABINET PARTS

Products

Position	Product
3	Nut,push-on
10A	COVER-COIL LOWER
10	WCI 5303006543
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
18A	WCI 5303001250
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23A	CLAMP-TUBE
23	WCI 5303209723
28	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
33	WCI 5308000086
33A	WCI 08000099
34	WCI 5308000186
38A	WCI 5308012934
38	WCI 5303001062
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38A	241710601 Frigidaire Refrigerator Screw
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	ROLLER-FRONT (2)
44	WCI 5303001030
47	CHANNEL-SHELF MTG (2)
