FPCI19VPW0 05 – SHELVES AND SUPPORTS

FPCI19VPW0 05 – SHELVES AND SUPPORTS

Written by

in

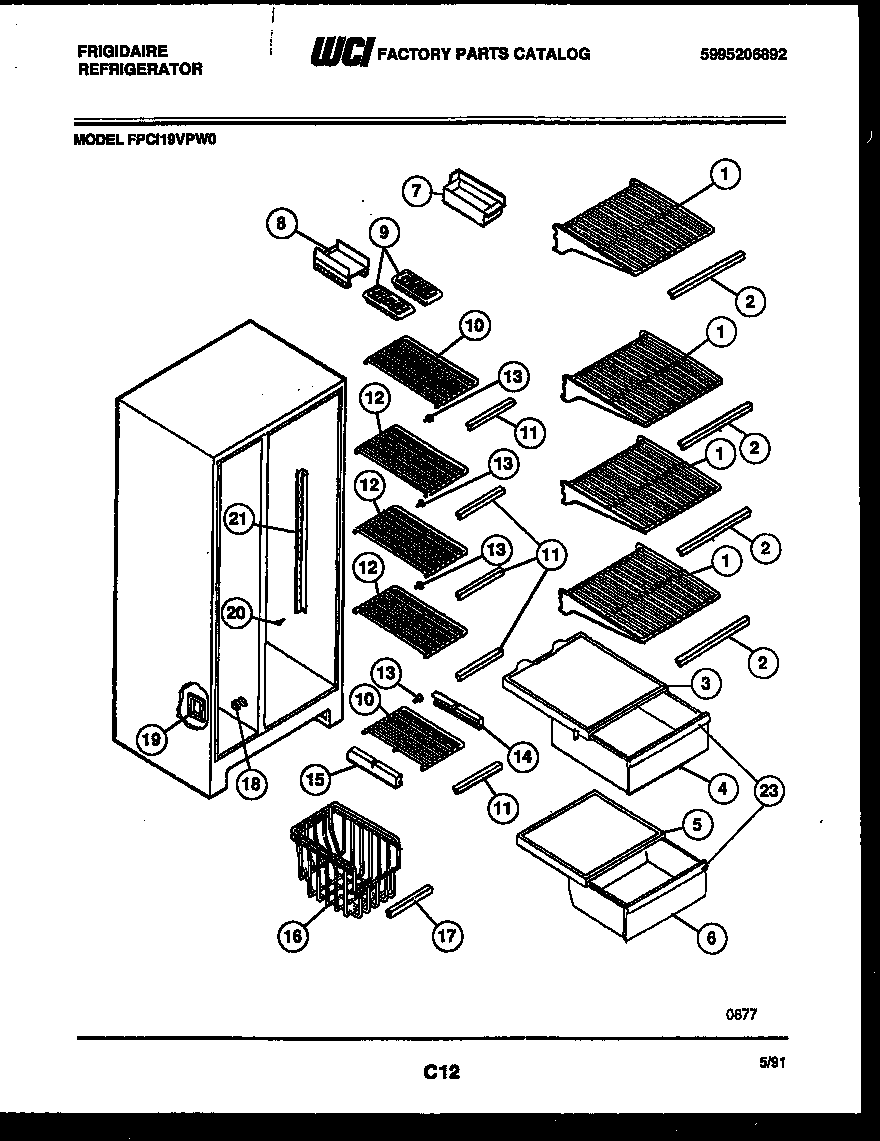

FPCI19VPW0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1SHELF-CANTILEVER, REFR, (4)
2TRIM-REFR SHELF, (4)
3WCI 3018647
3AWCI 3018752
4WCI 3018648
5WCI 3018649
6WCI 3018650
75303212918 Frigidaire Refrigerator Cont
8A5304455852 Frigidaire Refrigerator Screw
8WCI 08009824
9WCI 01121808
10WCI 08000905
11WCI 5303273189
12WCI 08000906
135304509705 Frigidaire Refrigerator Grommet
14WCI 5303001098
15WCI 5303001099
16WCI 5308017594
17WCI 3018651
18WCI 5303001287
18AWCI 5303001286
19AWCI 5303271653
19WCI 5303271652
20SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
21CHANNEL-SHELF MTG (2)
23WCI 3018750
