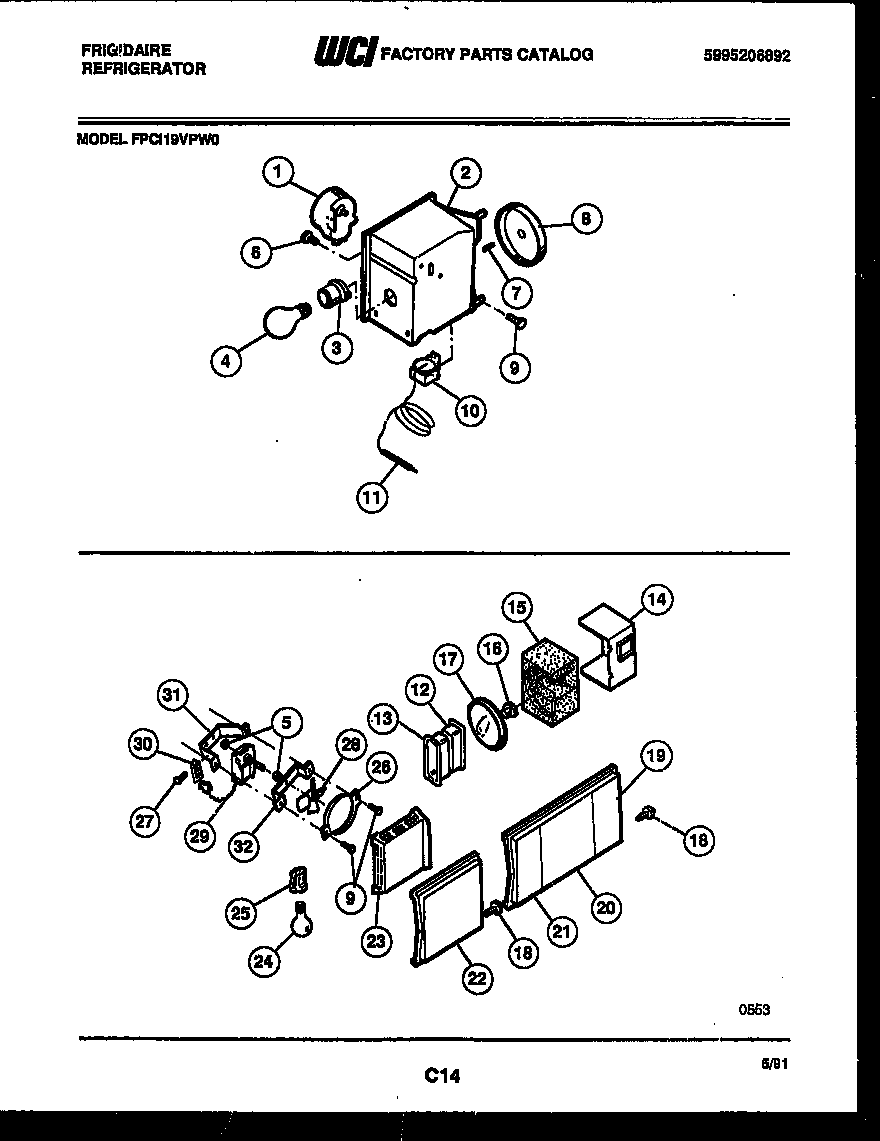

FPCI19VPW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FPCI19VPW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FPCI19VPW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2AWCI 3001269
2WCI 5308017561
3SOCKET-LIGHT/LAMP
5G187559 Frigidaire Refrigerator Bushing
65304455852 Frigidaire Refrigerator Screw
7WCI 5303001260
8WCI 5308010380
95304455649 Frigidaire Refrigerator Screw
10WCI 5308000068
11TUBE
12WCI 5303001277
13WCI 5303001276
13AWCI 5303001280
14WCI 5303211383
15WCI 5308000771
16WCI 5300185373
17WCI 5308010379
18WCI 5303001213
19LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20SHIELD-LIGHT, REFRIGERATOR
21LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22LIGHT SHIELD-FREEZER
23WCI 5316465401
24316538904 Frigidaire Oven Lamp Light
25218906802 Frigidaire Light Lamp Socket
26RING-FAN ORIFICE
275304455651 Frigidaire Refrigerator Screw
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5308000107
31BRACKET-MOTOR MTG, REAR
32WCI 5303205118
