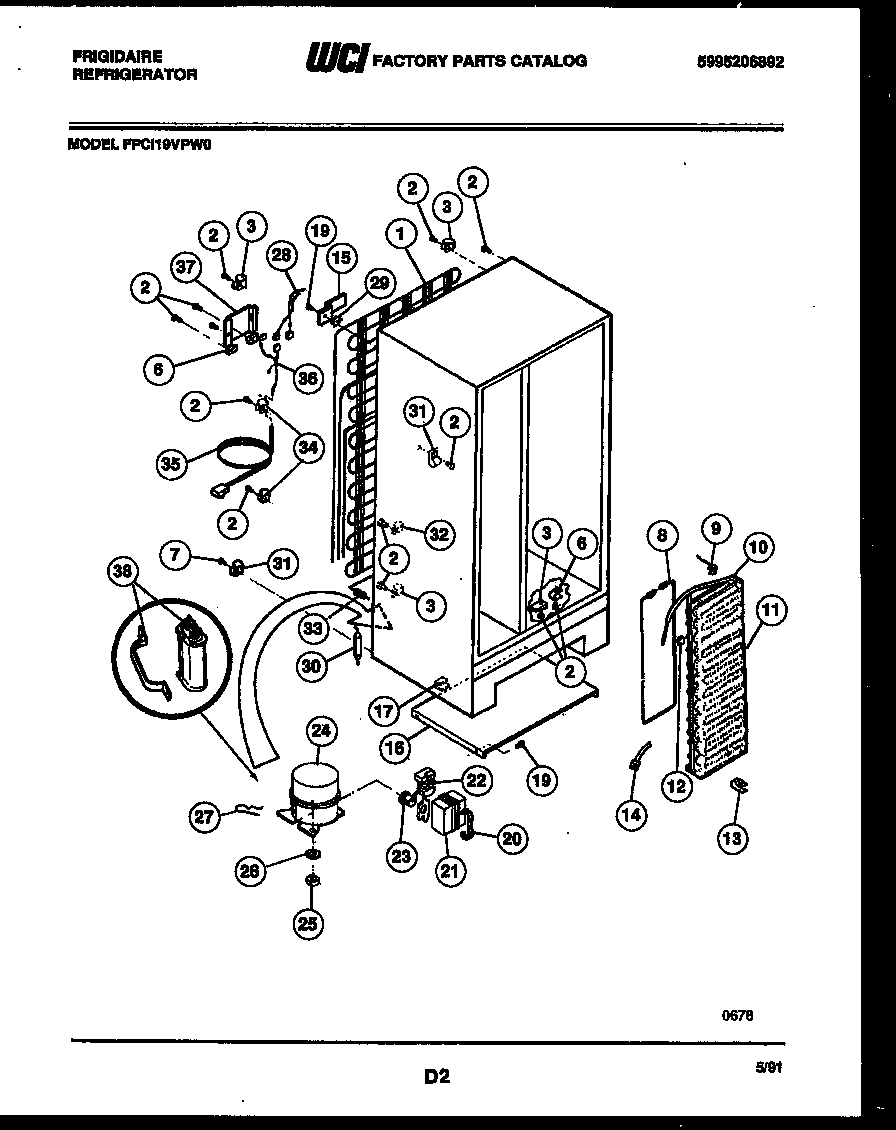

FPCI19VPW0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5308017228
2	WCI 5303001345
3	CLAMP-TUBE
8	WCI 5303007568
9	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10	WCI 5308017565
11A	WCI 5303001235
11	WCI 5303916605
12	WCI 5308000828
13	WCI 5308002777
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	BRACKET-MTG (4)
16	WCI 5300188724
17	WCI 08000099
19	5308000039 Frigidaire Refrigerator Screw
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
20A	WCI 5308009619
22	RELAY-TL
23	5303271616 Frigidaire Refrigerator P1-Overload
24	WCI 5308950223
25	218513300 Frigidaire Refrigerator Compressor Mount Grommet
26	WASHER-COMPR MTG
27	CLIP – COMPRESSOR MTG
28	WCI 5303015098
29	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
30	5303305677 Frigidaire Replacement Filter Dryer Filters
32	5308000133 Frigidaire Refrigerator Clamp
33	SLEEVE-CONNECTOR
34	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
35	CORD-ELECTRIC POWER
36	WCI 5308009616
37	WCI 5303001197
37A	WCI 5300189379
38	CAPACITOR
