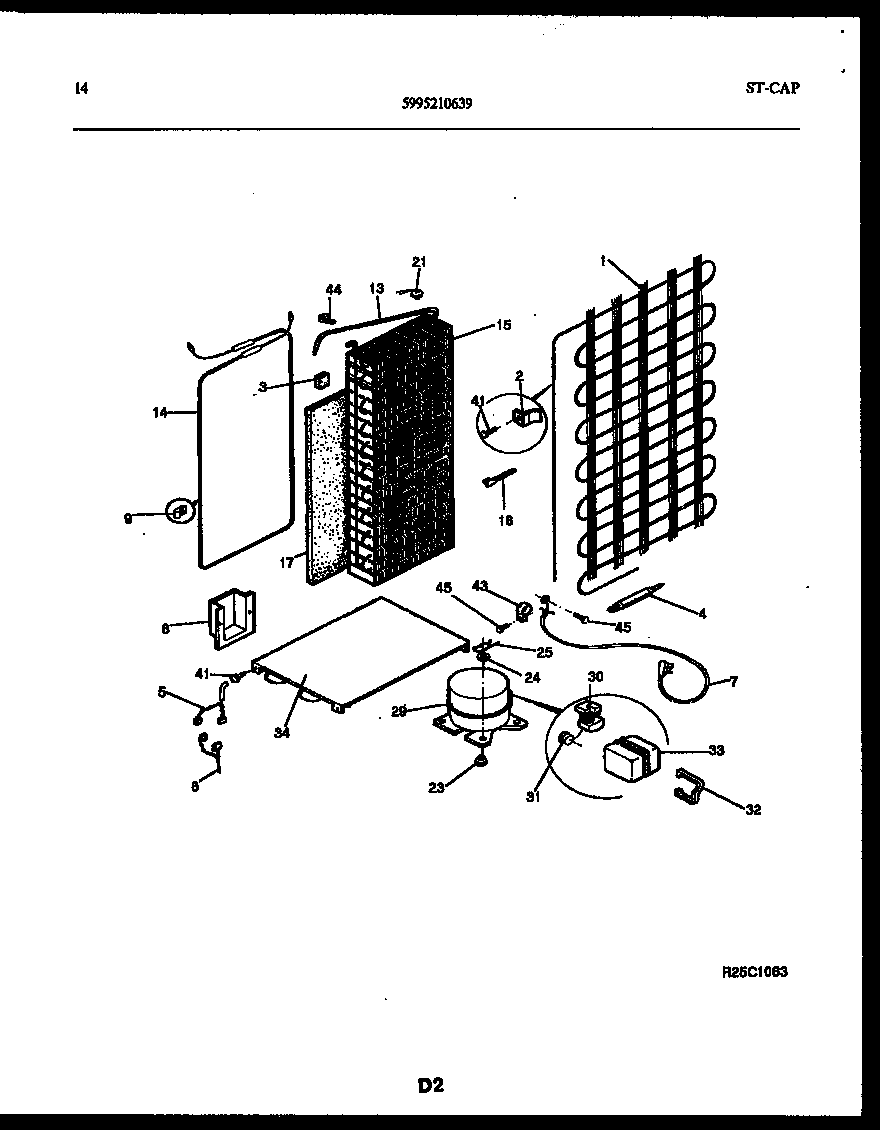

FPCI19VPW1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCI19VPW1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCI19VPW1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*55592WCI 5300189379
*55592WCI 5308009619
*55592218843801 Frigidaire Refrigerator Screw
*555925304455852 Frigidaire Refrigerator Screw
1WCI 5308017228
2BRACKET-MTG (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3WCI 5308000828
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303015098
6WCI 5308009616
7CORD-ELECTRIC POWER
8WCI 5303001197
9WCI 5308002777
13WCI 5308017565
14WCI 5303007568
15ATUBE-INLET (NOT ILLUSTRATED)
15WCI 5303916605
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303001235
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
29ACAPACITOR
29WCI 5308950223
30RELAY-TL
315303271616 Frigidaire Refrigerator P1-Overload
325303006412 Frigidaire Refrigerator Cover Mounting Strap
34WCI 5300188724
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
