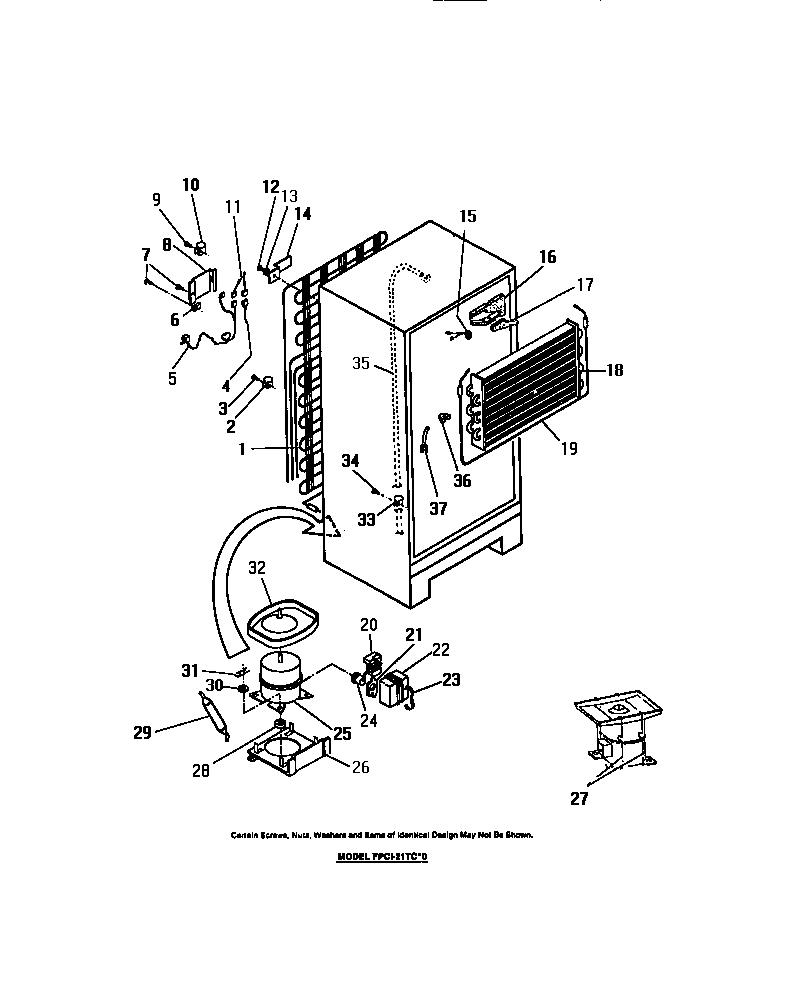

FPCI21TCH0 05 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

Position	Product
1	WCI 8000094
2	CLAMP-CABLE (3)
4	WCI 8009565
5	WCI 8000064
6	CLAMP-STRAIN RELIEF (3)
8	WCI 8013644
9	SCREW-PANEL MOUNTING (56)
10	WCI 8000187
11	WCI 8013675
13	WCI 8009617
14	BRACKET-CONDENSER MOUNTING (4)
15	WCI 8000073
16	WCI 8013646
17	WCI 8013648
18	WCI 8000062
19	WCI 8000061
20	WCI 8000024
21	WCI 8000115
22	WCI 8000116
23	WCI 8000117
24	WCI 8000114
25	WCI 8950106
26	WCI 8013663
27	WCI 8950024
28	WCI 8008778
29	WCI 8000027
30	WASHER (4)
31	CLIP (4)
32	DEFROST PAN-SERVICE COMPRESSOR
33	WCI 8003643
34	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
35	WCI 8010274
36	WCI 8003647
37	WCI 8000110
