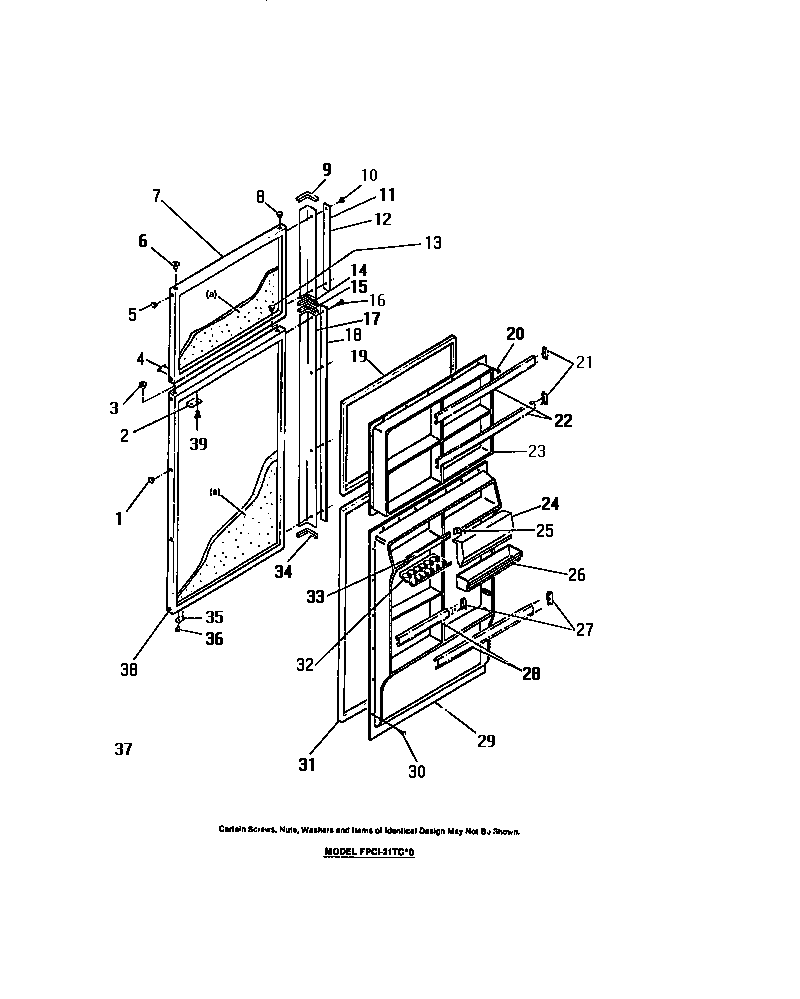

FPCI21TCL0 04 – FOOD AND FREEZER DOORS

Products

PositionProduct
4WCI 8009843
5BPLUG-HANDLE, ALMOND
6HINGE BEARING (8)
7BWCI 8013670
11WCI 8010234
12WCI 8009882
13BPLUG-HINGE, ALMOND
15END CAP-TOP (2)
17HANDLE ASSY W/ CAP & TRIM
18WCI 8010233
19WCI 8013662
22DOOR RACK-TOP
23WCI 8013672
24DAIRY DOOR
25SUPPORT-RACK LS (NON-ILLUSTRATED)
25ASUPPORT-RACK RS
26UTILITY BIN
27SUPPORT-RACK RS (2)
27ASUPPORT-RACK LS (2) (NON-ILLUSTRATED)
28WCI 8013657
29WCI 8013673
30SCREW-PANEL MOUNTING (56)
31WCI 8009735
32EGG TRAY
33WCI 8003640
34END CAP-BOTTOM (2)
35WCI 8000255
37BWCI 8009636
38BWCI 8009930
39SCREW-HANDLE MOUNTING (4)
