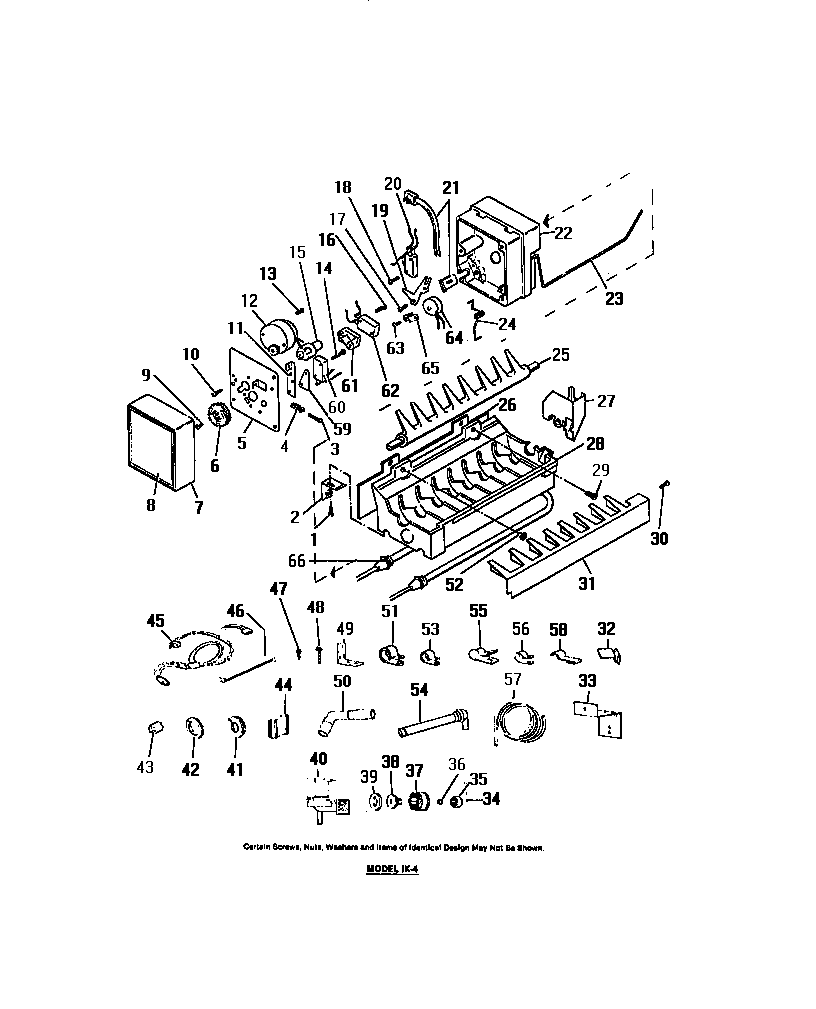

FPCI21TCL0 06 – IK-4 AUTOMATIC ICE MAKER

Products

Position	Product
2	WCI 8001246
4	WCI 8001251
5	WCI 8001239
6	WCI 8001248
7	WCI 8000214
8	WCI 8005251
9	WCI 8001182
10	SCREW (3)
11	PLATE-VALVE SW.
12	WCI 8001244
13	WCI 8001156
14	SCREW 4-40 X 3/4 (2)
15	WCI 8001247
16	WCI 8001148
17	WCI 8001255
18	SCREW 4-24 X 3/4
19	ARM-LEVER
21	WCI 8000235
22	WCI 8001235
23	ARM-SHUT OFF
24	SPRING-SHUT OFF
25	WCI 8001253
26	WCI 8000236
27	BEARING & INLET
28	WCI 8001254
29	WCI 8005288
30	SCREW
31	STRIPPER-ICE
32	WCI 8000201
33	BRACKET-WATER VALVE
34	WCI 8000205
35	WCI 114627
36	WCI 114628
37	WCI 1121985
38	WCI 1121980
39	WCI 8001143
40	VALVE-WATER
41	WCI 8000241
42	WCI 8000240
43	WCI 8000290
44	PLUG-ADAPTER
45	WCI 8000224
46	SEALING STRIP-BULK
47	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
48	WCI 8002728
49	CLAMP-CABLE (3)
50	TUBE-FILLER
51	WCI 8008782
52	EYELET (2)
53	WCI 8000221
54	TUBE-INLET
55	WCI 8009561
56	WCI 8000250
57	WCI 8000199
58	CLIP-TUBE
59	WCI 8001241
61	SPACER-HOLD. SW.
62	SWITCH-SHUT OFF
63	SCREW 8-32 X 1
64	WCI 8001250
65	WCI 8001236
66	WCI 8001243
