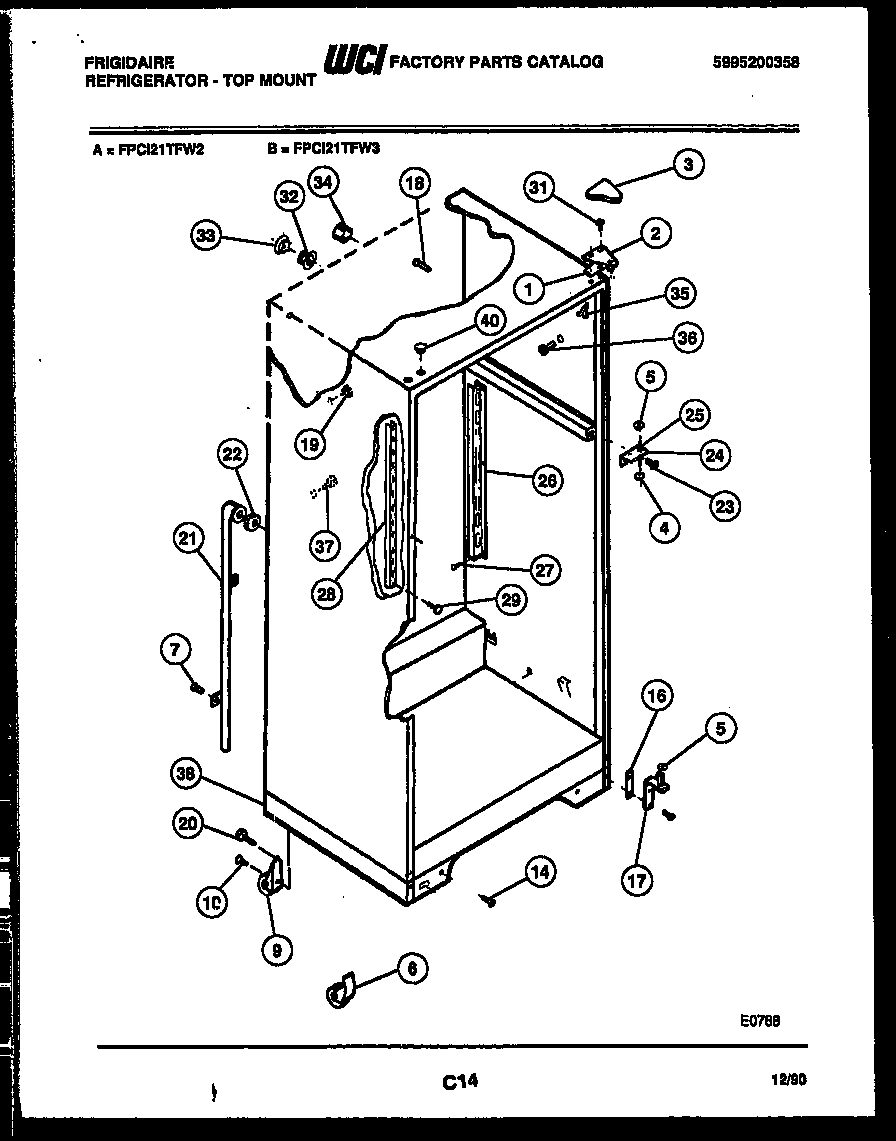

FPCI21TFA2 03 – CABINET PARTS

Products

PositionProduct
*41160TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*41160TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*41160TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-HINGE-AVOCADO
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5303212490
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
14WCI 5303212598
16WCI 5303212488
17BRACKET-LOWER HINGE, W/ HINGE PIN
18SUPPORT-COIL COVER
19PLUG, BUTTON, CABINET LINER (NI)
205304455651 Frigidaire Refrigerator Screw
21WCI 5303210377
22WCI 5303207353
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
275304455852 Frigidaire Refrigerator Screw
28WCI 5303015409
29WCI 5308016568
32WCI 5303001286
33WCI 5303001287
34TUBE-RUBBER
35CORNER
365304509705 Frigidaire Refrigerator Grommet
375304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38WCI 5303212487
40BUTTON-HINGE-AVOCADO
41241710601 Frigidaire Refrigerator Screw
