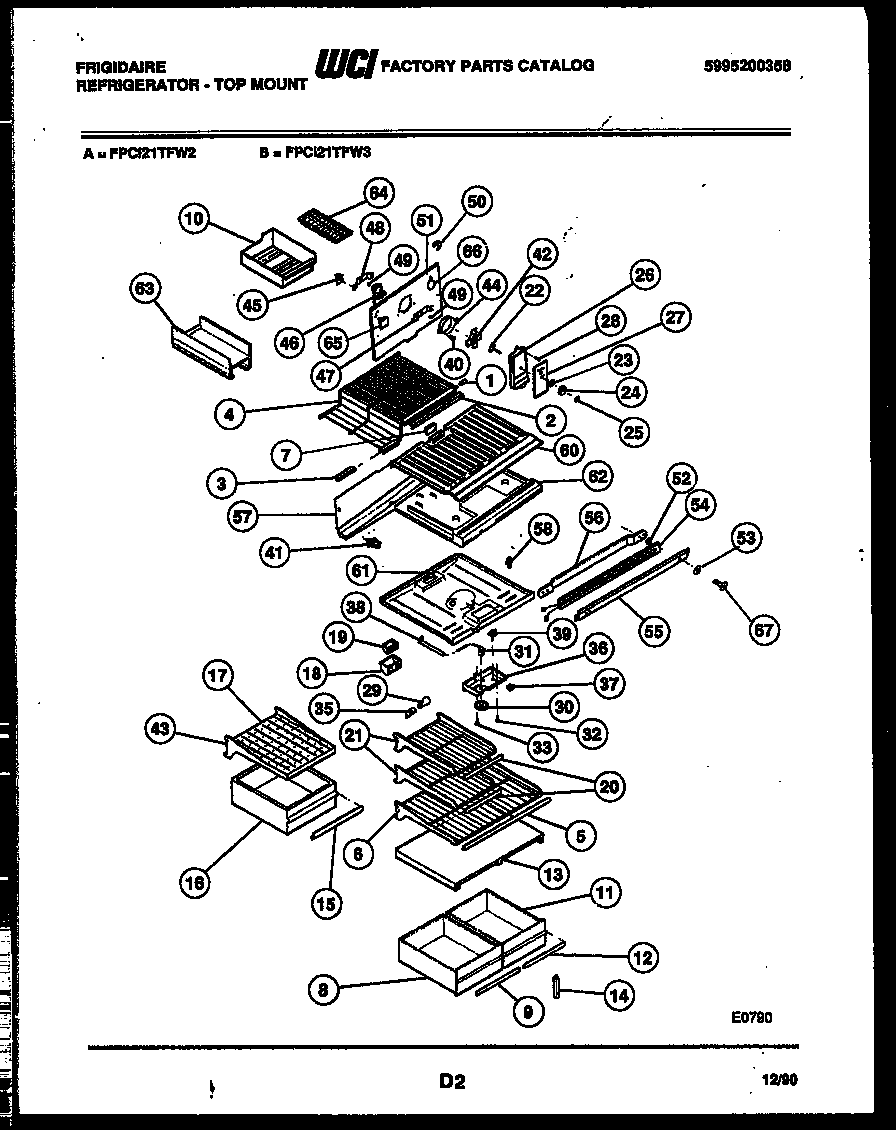

FPCI21TFF2 04 – SHELVES AND SUPPORTS

FPCI21TFF2 04 – SHELVES AND SUPPORTS

Written by

in

FPCI21TFF2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2WCI 3017428
3TRIM-SHELF-FREEZER
4WCI 3019033
5TRIM
6WCI 5303019034
7WCI 08000185
8PAN, CRISPER, LH
9TRIM-PAN
105303212918 Frigidaire Refrigerator Cont
11PAN, CRISPER, RH
12TRIM-PAN
13WCI 5303019035
13CWCI 3018984
13AWCI 3018985
13BGASKET-CRISPER COVER (NON-ILLUSTRATED)
14SUPPORT, COVER
15WCI 3018936
16WCI 3018987
17WCI 3018988
18AEXTENSION, AIR DEFLECTOR, WITH INSULATION
18WCI 5303001448
19DEFLECTRO, AIR, W/SEAL
19A5303001449 Frigidaire Refrigerator Seal
20WCI 3019036
21WCI 3019037
22DAMPER-FAN COVER
23Nut,push-on
24KNOB, DAMPER
25LABEL, KNOB
26WCI 08009825
27WCI 08009934
29316538904 Frigidaire Oven Lamp Light
30KNOB, TEMP CONTROL
31WCI 5303018894
325304455649 Frigidaire Refrigerator Screw
33WCI 5303001260
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
37WCI 5303018896
38WCI 3018891
39215846604 Frigidaire Refrigerator Defrost Timer
405304455651 Frigidaire Refrigerator Screw
41WCI 5308000056
41AWCI 5303001361
425308000010 Frigidaire Refrigerator Evaporator Fan Blade
43RAIL-STRAIGHT RH (NON-ILLUSTRATED)
43ARAIL-OFFSET LH
43BSCREW 8-18 X 3/8 (NON-ILLUSTRATED)
44RING-FAN ORIFICE
45WCI 5308000107
465300158289 Frigidaire Evaporator Fan Motor
47WCI 5303001226
48BRACKET-MOTOR MTG, REAR
49G187559 Frigidaire Refrigerator Bushing
50NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
51COVER, COIL
51A5304455650 Frigidaire Refrigerator Screw
52SPACER-MULLION MTG, STEEL
53WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
54WCI 5303210351
55WCI 5303200369
56WCI 5308010008
57WCI 5303001470
585309918806 Frigidaire Refrigerator Light Switch Door
60BOTTOM, FREEZER
61WCI 3019038
61AWCI 5303001380
62WCI 5303019039
62A3205266 Frigidaire Refrigerator Edge Protector
63B5304455852 Frigidaire Refrigerator Screw
63WCI 08009824
63AWCI 08012329
64WCI 01121808
65BUTTON – DECORATIVE PLUG
665303208309 Frigidaire Refrigerator Plug Hole
67WCI 5308012258
