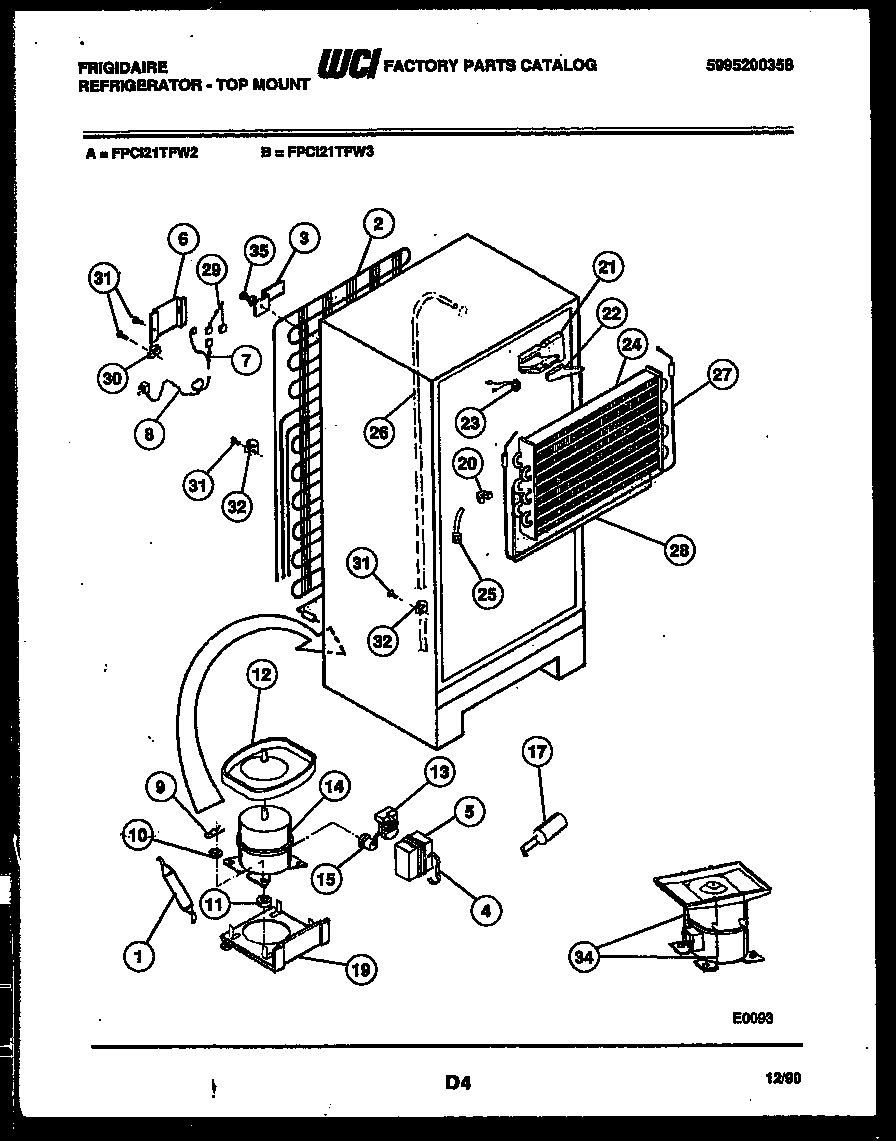

FPCI21TFW2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*41168WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*41168HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12APAN-DEFROST DRAIN, ORIG/SVCE COMPR
12CNut,lock `1/4-20 ,drain pan mtg
12B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 5308017532
15AWCI 3202891
17CAPACITOR
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000133 Frigidaire Refrigerator Clamp
34PAN RETAINER KIT, SERVICE
355308000039 Frigidaire Refrigerator Screw
