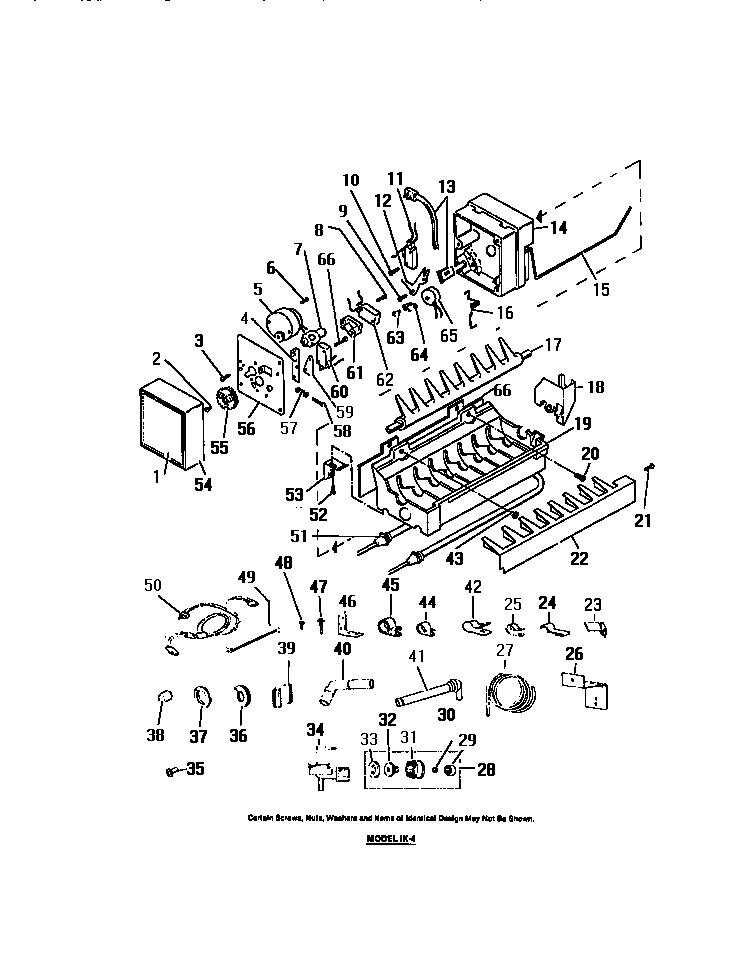

FPCI21TML3 05 – IK-4 AUTOMATIC ICE MAKER

Products

Position	Product
1	WCI 8005251
2	WCI 8001182
3	SCREW (3)
4	PLATE-VALVE SW.
5	WCI 8001244
6	WCI 8001156
7	WCI 8001247
8	WCI 8001148
9	WCI 8001255
10	SCREW 4-24 X 3/4
12	ARM-LEVER
14	WCI 8001235
15	ARM-SHUT OFF
16	SPRING-SHUT OFF
17	WCI 8001253
18	BEARING & INLET
19	WCI 8001254
20	WCI 8005288
22	STRIPPER-ICE
23	WCI 8000201
24	CLIP-TUBE
25	WCI 8000250
26	BRACKET-WATER VALVE
27	WCI 8010366
28	WCI 8000205
29	WCI 114627
30	WCI 114628
31	WCI 1121985
32	WCI 1121980
33	WCI 8001143
34	VALVE-WATER
35	WCI 8010335
36	WCI 8000241
37	WCI 8000240
38	NUT 7/16-20 NYLON
39	PLUG-ADAPTER
40	TUBE-FILLER
41	TUBE-INLET
42	WCI 8009561
43	EYELET (2)
44	WCI 8000221
45	WCI 8000133
46	CLAMP-CABLE (3)
47	WCI 8002728
48	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
49	SEALING STRIP-BULK
50	WCI 8950138
51	WCI 8001243
52	SCREW
53	WCI 8001246
54	WCI 8000214
55	WCI 8001248
56	WCI 8001239
57	WCI 8001251
59	WCI 8001241
60	WCI 8016595
61	SPACER-HOLD. SW.
62	WCI 8016600
63	SCREW 8-32 X 1
64	WCI 8001236
65	WCI 8001250
66	WCI 8000236
67	SCREW 4-40 X 3/4 (2)
