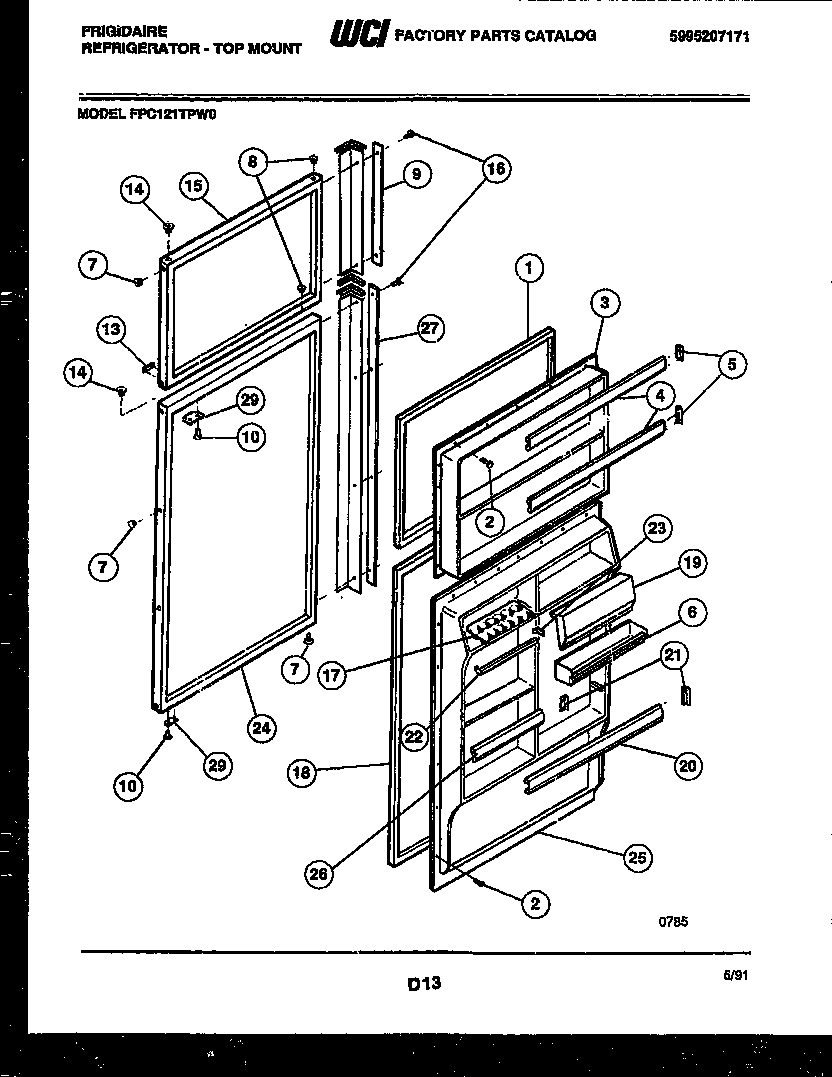

FPCI21TPW0 02 – DOOR PARTS

FPCI21TPW0 02 – DOOR PARTS

Written by

in

FPCI21TPW0 02 – DOOR PARTS

Products

PositionProduct
*92441WCI 5308000255
*92442SNUGGER-FINGER (NON-ILLUSTRATED)
*92442INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5308017483
25304455651 Frigidaire Refrigerator Screw
3WCI 3019030
4WCI 3017419
6WCI 3018973
7240494001 Frigidaire Refrigerator Plug Button
8PLUG-BUTTON, WHITE, HINGE BRG HOLE
9WCI 5303272793
10WCI 53080112745
13NAMEPLATE
14BEARING-HINGE
15WCI 5303916115
16SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19DOOR-DAIRY
20215516220 Frigidaire Refrigerator Door Rack
21A5303325991 Frigidaire Refrigerator Door Bar Endcap
215303325990 Frigidaire Refrigerator Door Bar End Cap
22WCI 3019031
23A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
235303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24PANEL-REFR DOOR, WHITE
25WCI 3019032
27HANDLE-DOOR, WHITE, REFR
29DOOR STOP, REFR SECTION
