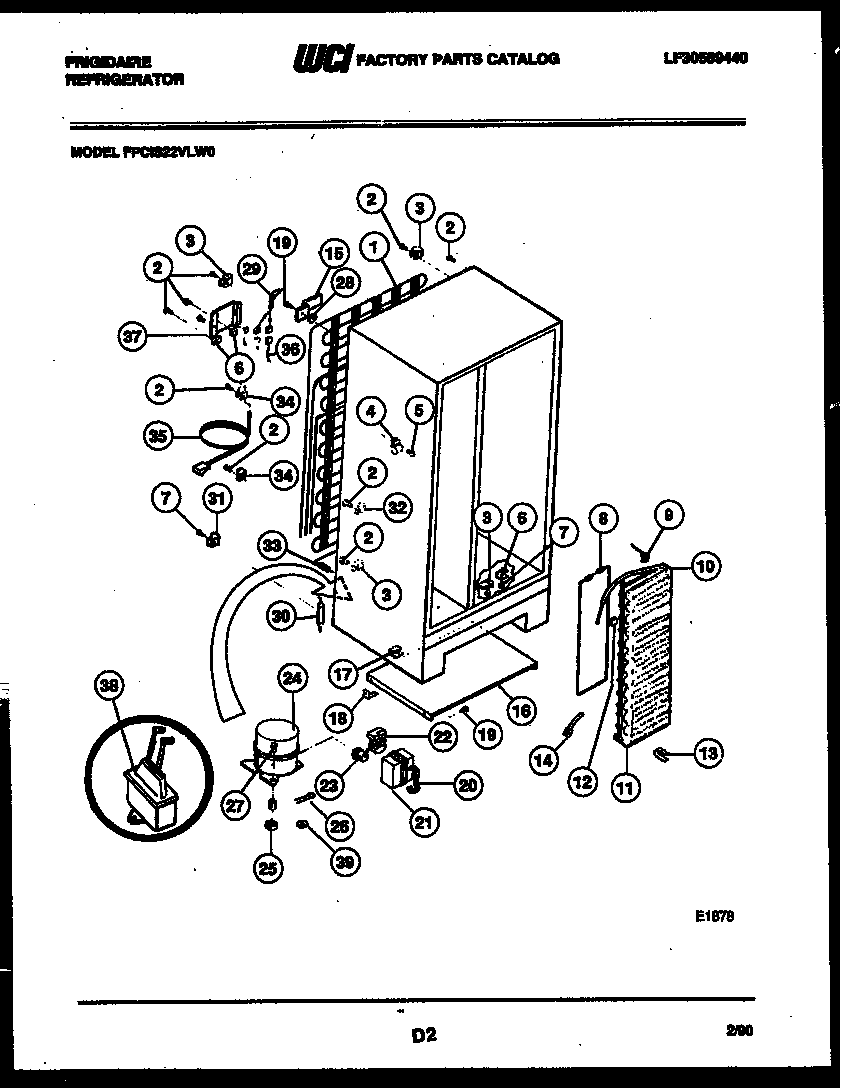

FPCIS22VLF0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPCIS22VLF0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPCIS22VLF0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 08017113
25304455651 Frigidaire Refrigerator Screw
3WCI 08000221
4CLAMP – TUBE (2)
55304455650 Frigidaire Refrigerator Screw
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
8WCI 08017562
95303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10WCI 08017565
11WCI 3206421
12WCI 08000828
13WCI 08002777
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 08000296
16WCI 08017118
17WCI 08002780
18WCI 08002782
19218843801 Frigidaire Refrigerator Screw
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21WCI 08006982
22WCI 3007173
235303271616 Frigidaire Refrigerator P1-Overload
24WCI 08950223
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26CLIP (4)
27WCI 08000029
28WCI 08009617
29WCI 3015098
305303305677 Frigidaire Replacement Filter Dryer Filters
32240396801 Frigidaire Refrigerator Tube Clamp
33SLEEVE-CONNECTOR
35WCI 08000064
36WCI 08009616
37AWCI 09960005
37WCI 08013644
38CAPACITOR-RUN
39WCI 08003597
