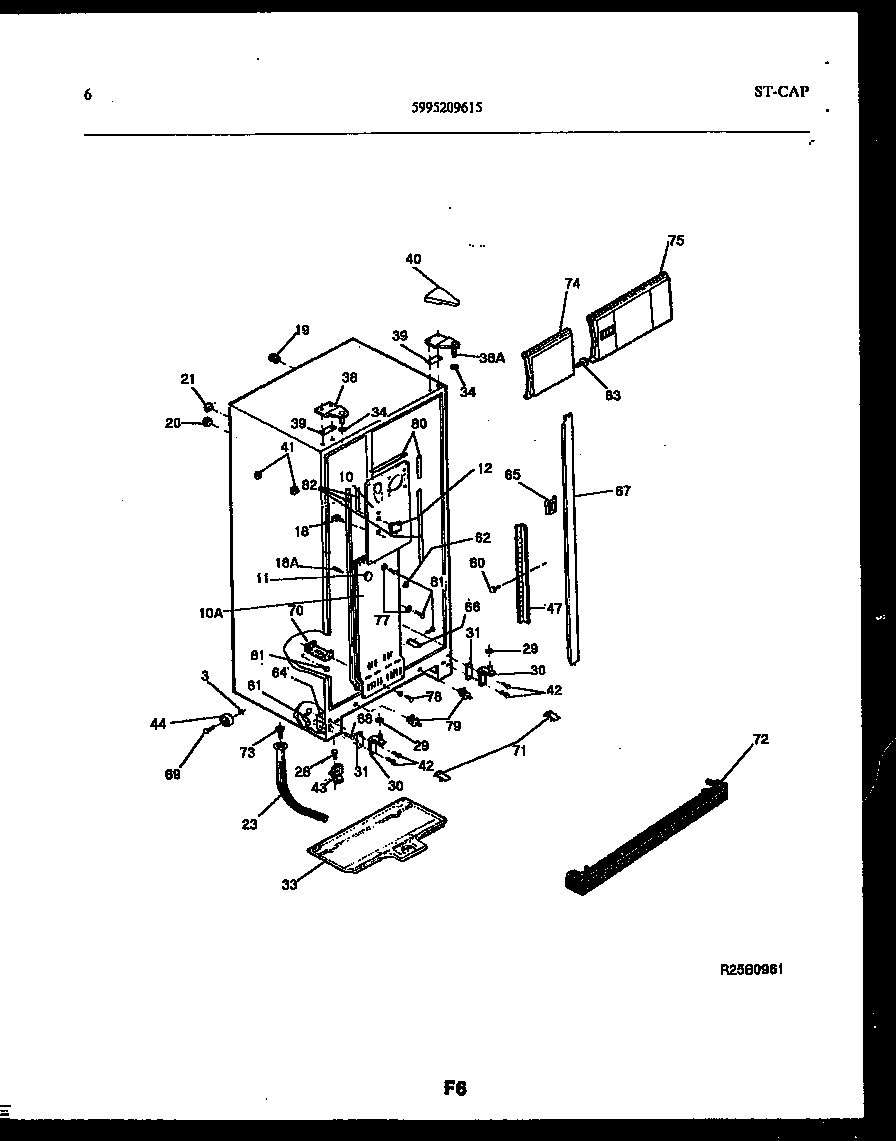

FPCIS22VPL1 04 – CABINET PARTSadmin2025-04-26T08:34:34+00:00FPCIS22VPL1 04 – CABINET PARTS
Products
| Position | Product |
|---|
| 3 | Nut,push-on |
| 10A | COVER-COIL LOWER |
| 10 | WCI 5303006543 |
| 10B | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 11 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 12 | PLUG-DECORATIVE, ICE MAKER HOLE |
| 18 | SUPPORT-COIL COVER |
| 18A | WCI 5303001250 |
| 19 | TUBE-RUBBER |
| 20 | WCI 5303001286 |
| 21 | WCI 5303001287 |
| 23 | WCI 5303209723 |
| 28 | SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED) |
| 29 | WASHER, .28 X .62 X .19, NYLON |
| 30 | HINGE-BOTTOM |
| 31 | SHIM-BTM HINGE (3) |
| 33 | WCI 5303001026 |
| 34 | WCI 5308000186 |
| 38A | WCI 5308012934 |
| 38 | WCI 5303001062 |
| 38B | 241710601 Frigidaire Refrigerator Screw |
| 38C | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 39 | SHIM - UPPER HINGE |
| 40 | COVER-UPPER HINGE, ALMOND |
| 41 | 5304509705 Frigidaire Refrigerator Grommet |
| 42 | SCREW-HINGE MTG (2) (NON-ILLUSTRATED) |
| 43 | ROLLER-FRONT (2) |
| 43A | SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8 |
| 44 | WCI 5303001030 |
| 47 | CHANNEL-SHELF MTG (2) |
| 60 | 5304455852 Frigidaire Refrigerator Screw |
| 61 | WCI 5300077210 |
| 62 | WCI 5303001231 |
| 63 | WCI 5303001213 |
