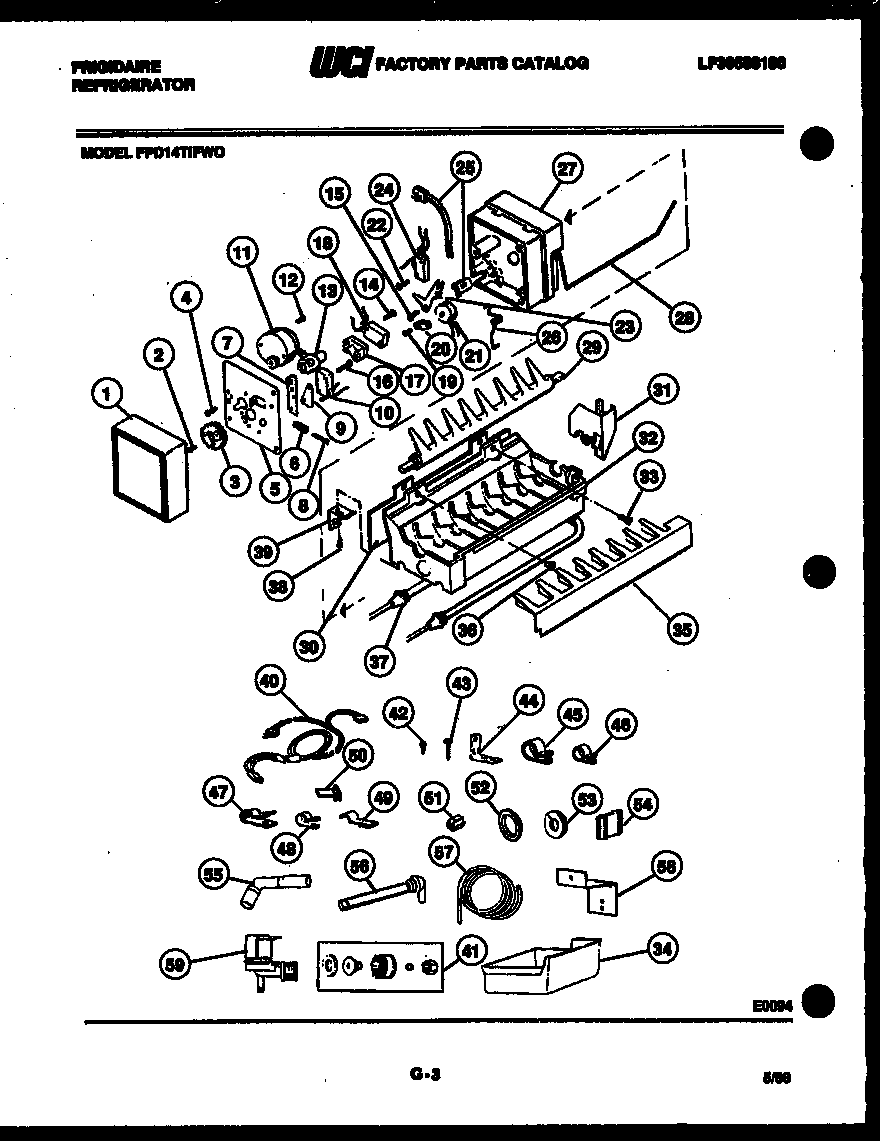

FPD14TIFF0 05 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1	WCI 8000214
2	WCI 8001182
3	WCI 8001248
4	SCREW (3)
5	WCI 8017559
6	WCI 8001251
7	PLATE-VALVE SW.
9	WCI 8001241
11	WCI 8001244
13	WCI 8001247
14	WCI 8001148
15	WCI 8001255
16	SCREW 4-40 X 3/4 (2)
17	SPACER-HOLD. SW.
19	SCREW 8-32 X 1
20	WCI 8001236
21	WCI 8001250
22	SCREW 4-24 X 3/4
23	ARM-LEVER
24	SWITCH-SHUT OFF
26	SPRING-SHUT OFF
27	WCI 8001235
28	ARM-SHUT OFF
29	WCI 8001253
30	WCI 8000236
31	BEARING & INLET
32	WCI 8001254
34	5303212918 Frigidaire Refrigerator Cont
35	STRIPPER-ICE
36	EYELET (2)
37	WCI 8001243
38	SCREW (2)
39	WCI 8001246
40	WCI 8014553
41	WCI 8000205
42	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
43	WCI 8002728
44	CLAMP-STRAIN RELIEF (3)
45	WCI 8008782
46	WCI 8000221
47	WCI 8009561
48	WCI 8000250
49	CLIP-TUBE
50	WCI 8000201
51	NUT 7/16-20 NYLON
52	WCI 8000240
53	WCI 8000241
54	PLUG-ADAPTER
55	TUBE-FILLER
56	TUBE-INLET
57	WCI 8000199
58	BRACKET-WATER VALVE
59	VALVE-WATER
