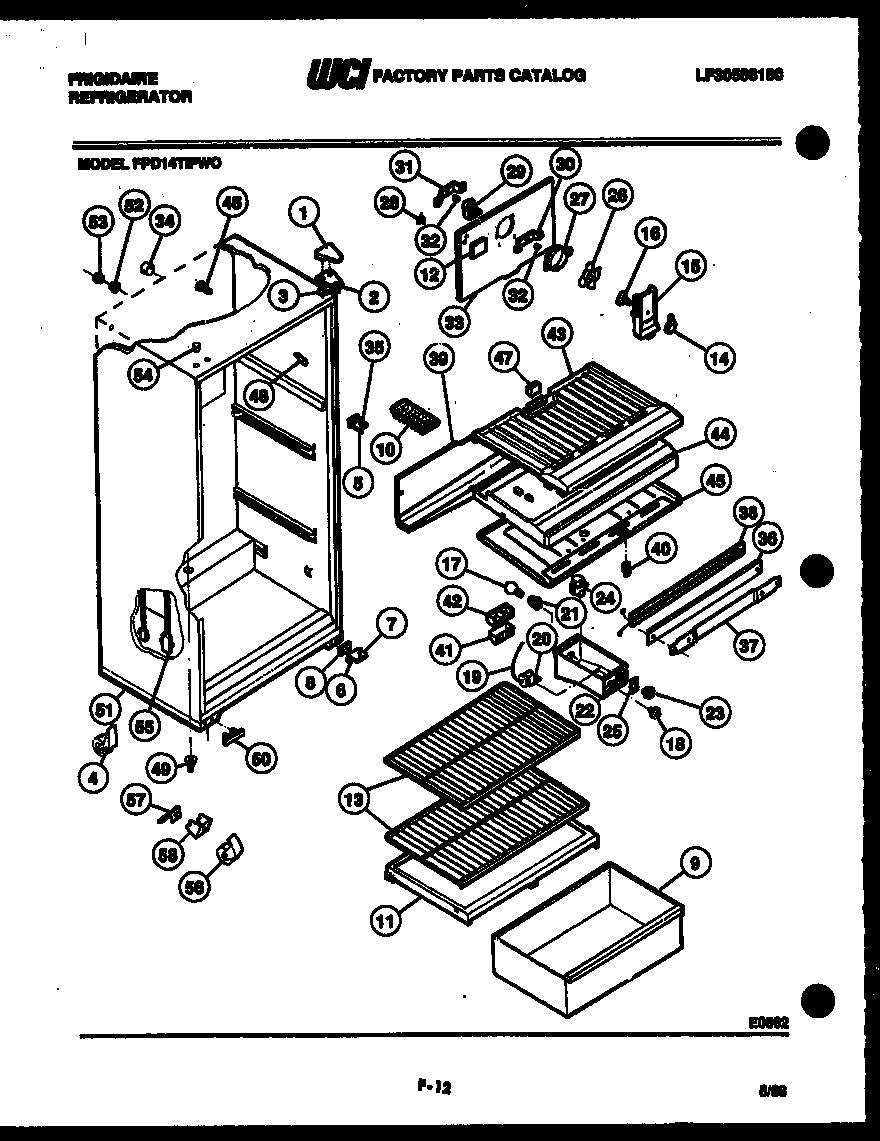

FPD14TIFL0 03 – CABINET PARTS

Products

Position	Product
*23541	WCI 8009761
1	COVER, HNG, ALMD
2	WCI 8012843
2B	SCREW-HINGE MOUNTING (2)
2A	WASHER-1/4 NYLON (3)
3	WCI 8012829
3A	TAPPING PLATE (4)
4	WCI 8009773
4A	WCI 8009762
5	WCI 8000184
6	BRACKET-HNG
6A	SCREW-HINGE MOUNTING
7	PIN-LOWER HINGE
8	SHIM-LOWER HINGE
9	WCI 3018424
10	ICE CUBE TRAY (2)
11	WCI 3018425
12	WCI 8013636
13	WCI 3018389
14	WCI 8009793
14A	WCI 8009823
15	WCI 3018426
16	WCI 8000066
16A	WCI 8000067
17	LIGHT BULB
18	WCI 8006978
19	WCI 8003637
20	CONTROL TEMP
20A	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
21	WCI 8000129
22A	SCREW (5)
22	WCI 8009730
23	WCI 8016615
24A	WCI 8000008
24	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25	LABEL-CONTROL BOX
26	WCI 8000010
27	WCI 8000124
28	WCI 8000107
28A	SCREW-PANEL MOUNTING (56)
29	WCI 8000036
30	WCI 8000043
31	WCI 8000042
32	WCI 8000032
33	WCI 8003636
33A	WCI 8000126
34	WCI 8000004
35B	WCI 8003607
35A	SCREW-HINGE/MULLION (4)
35	WCI 8000757
36	WCI 8006975
36A	WCI 8003608
37	WCI 8003604
38	WCI 8000744
39	WCI 8003638
40	SWITCH, LIGHT
41	WCI 8000055
42	WCI 8000071
43	WCI 8000748
44	WCI 8000759
45A	SCREW-TOP MOUNTING (3)
45	TOP-REFRIGERATOR
46	WCI 8000097
47	WCI 8000185
48	WCI 8003618
49	WCI 8003605
50	WCI 8003585
51	WCI 8010090
52	WCI 8006970
53	WCI 8006971
54	WCI 8007129
55	WCI 8006993
55B	WCI 8016571
55A	PLUG-REFRIGERATOR LINER (2)
56	WCI 8009760
57	WCI 8009790
58	WCI 8013678
