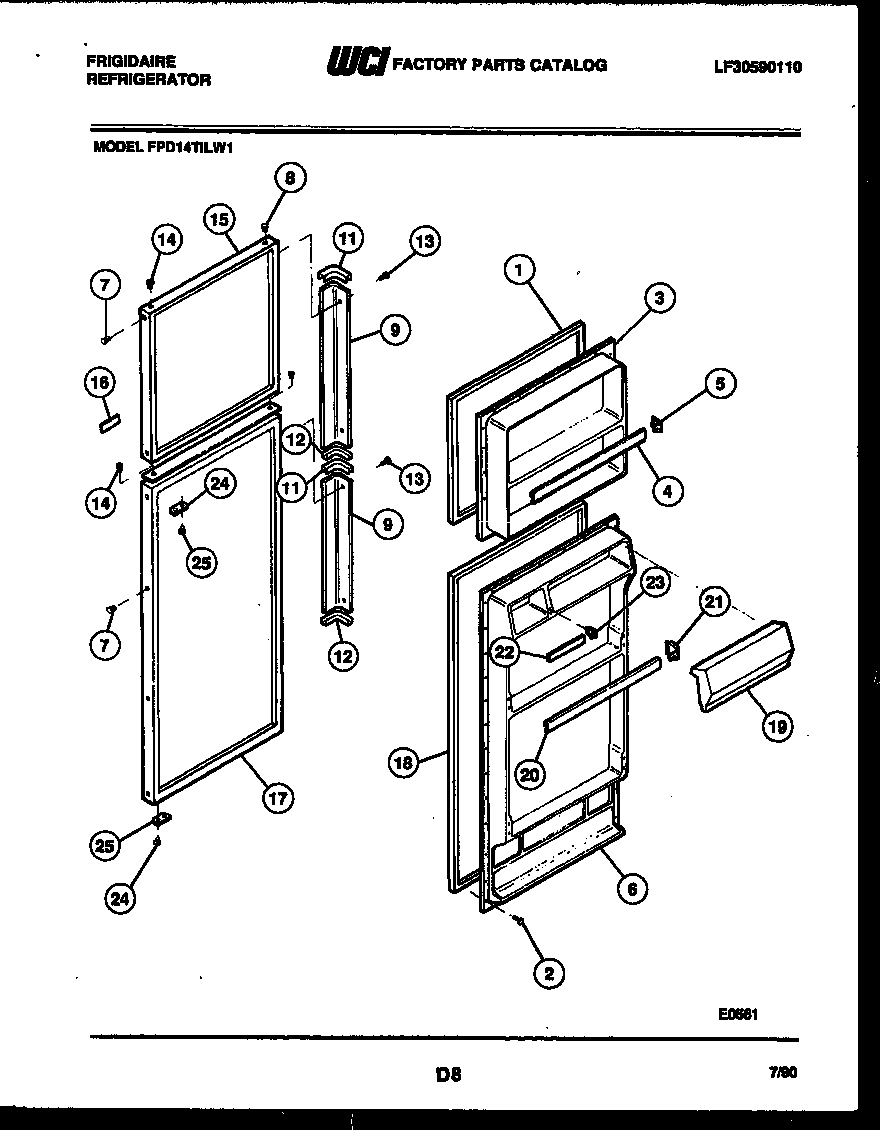

FPD14TILA1 02 – DOOR PARTS

FPD14TILA1 02 – DOOR PARTS

Written by

in

FPD14TILA1 02 – DOOR PARTS

Products

PositionProduct
1GASKET, FRZR DOOR, BROWN, MAGNETIC
2WCI 80000155
3WCI 3018416
4WCI 3018417
6WCI 3018418
7BUTTON-AVOCADO
8BUTTON-AVOCADO
9HANDLE ASSEMBLY WITH CAP & TRIM (2)
11WCI 5308010239
12END CAP-BOTTOM (2)
13SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
14BEARING-HINGE
15WCI 3916043
16NAMEPLATE
17WCI 3916048
18GASKET-REFR DOOR, MAGNETIC
19WCI 5303018419
20215516220 Frigidaire Refrigerator Door Rack
21ASUPPORT, LH (2) (NON-ILLUSTRATED)
21SUPPORT, RH (2)
22RACK-REFR DOOR
23A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
235303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
24WCI 5308000255
25WCI 5308011745
