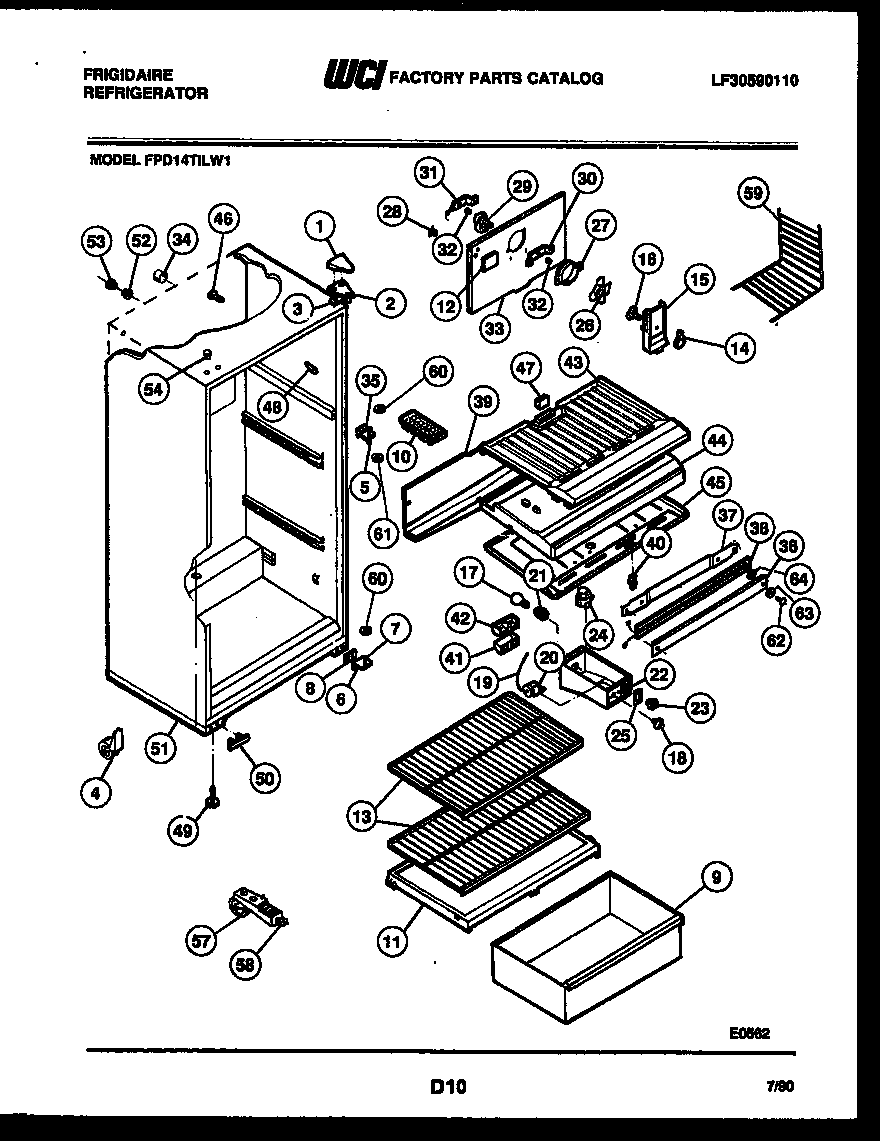

FPD14TILL1 03 – CABINET PARTS

Products

PositionProduct
1COVER-UPPER HINGE, ALMOND
2AWASHER, .34 X .62 X .05, NYLON
2BRACKET-UPPER HINGE
3ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
3SHIM – UPPER HINGE
4WCI 5308009773
4A5304455651 Frigidaire Refrigerator Screw
4BBOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
5WCI 5308000184
6A241710601 Frigidaire Refrigerator Screw
6HINGE – LOWER DOOR
75303001321 Frigidaire Refrigerator Lower Hinge Pin
8SHIM-LOWER HINGE
9WCI 3018424
10WCI 01121808
11WCI 3018425
12BUTTON – DECORATIVE PLUG
13SHELF, REFR (2)
14ALABEL, KNOB
14KNOB, DAMPER
15WCI 08009819
16DAMPER-FAN COVER
16ANut,push-on
17316538904 Frigidaire Oven Lamp Light
18WCI 08006978
19TUBE
20AWCI 5303001260
20WCI 5308015762
21SOCKET-LIGHT/LAMP
22WCI 5308009730
23WCI 5308016615
24A5304455649 Frigidaire Refrigerator Screw
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI 08006988
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27RING-FAN ORIFICE
28WCI 5308000107
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5303001226
31WCI 5303001227
32G187559 Frigidaire Refrigerator Bushing
33A5303208309 Frigidaire Refrigerator Plug Hole
33C5304455650 Frigidaire Refrigerator Screw
33BNUT-SPEED (2)
33WCI 3001358
34TUBE-RUBBER
35BWASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
35BRACKET-CTR HINGE
35AWCI 5308012258
36AWCI 3001370
37WCI 5308003604
38WCI 5308017408
39TROUGH-DRAIN
405309918806 Frigidaire Refrigerator Light Switch Door
41COVER – AIR DEFLECTOR
42DEFLECTOR-AIR
43WCI 5308000748
44WCI 5308000759
45AWCI 5303001380
45TOP PANEL-REFR, W/ SNAP BUSHING
46SUPPORT-COIL COVER
47WCI 08000185
48TRIM-CAB CORNER-ALMD
