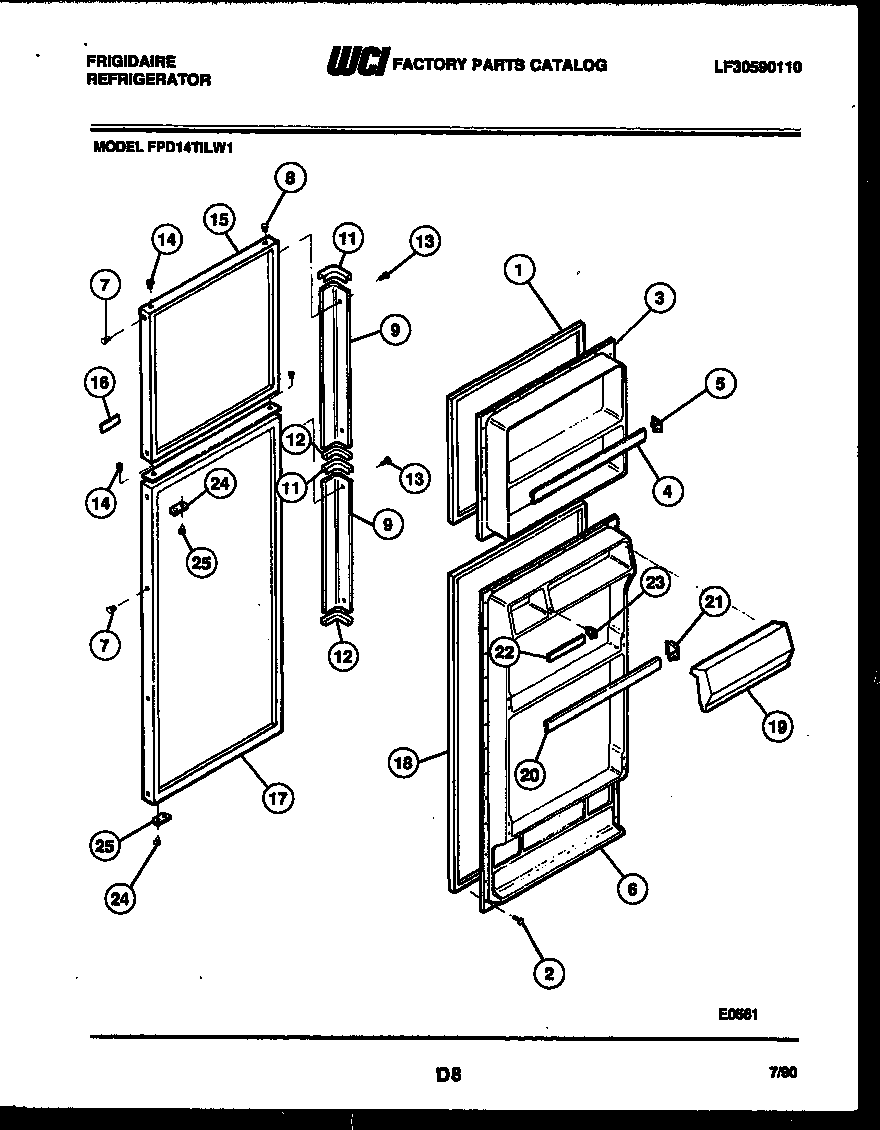

FPD14TILW1 02 – DOOR PARTS

Products

Position	Product
1	GASKET, FRZR DOOR, BROWN, MAGNETIC
2	WCI 80000155
3	WCI 3018416
4	WCI 3018417
6	WCI 3018418
7	240494001 Frigidaire Refrigerator Plug Button
8	PLUG-BUTTON, WHITE, HINGE BRG HOLE
9	HANDLE ASSEMBLY WITH CAP & TRIM (2)
11	WCI 5308010239
12	END CAP-BOTTOM (2)
13	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
14	BEARING-HINGE
15	PANEL-FRZR DOOR, WHITE
16	NAMEPLATE
17	PANEL-REFR DOOR, WHITE
18	GASKET-REFR DOOR, MAGNETIC
19	WCI 5303018419
20	215516220 Frigidaire Refrigerator Door Rack
21A	SUPPORT, LH (2) (NON-ILLUSTRATED)
21	SUPPORT, RH (2)
22	RACK-REFR DOOR
23	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
23A	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24	WCI 5308000255
25	WCI 5308011745
