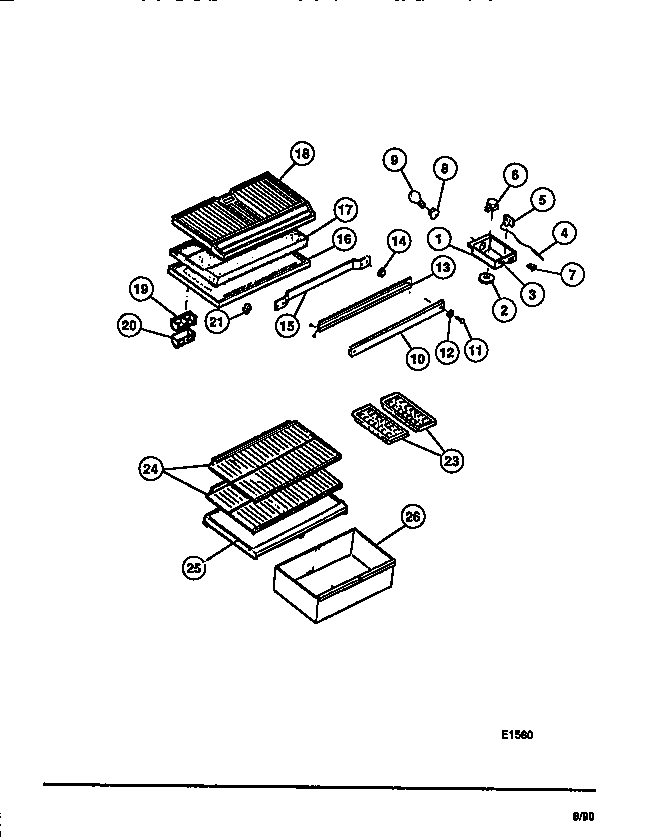

FPD14TLA1 04 – FOOD COMPARTMENT, SHELVES, MOULDING

FPD14TLA1 04 – FOOD COMPARTMENT, SHELVES, MOULDING

Written by

in

FPD14TLA1 04 – FOOD COMPARTMENT, SHELVES, MOULDING

Products

PositionProduct
1WCI 5308009730
1A5304455650 Frigidaire Refrigerator Screw
2WCI 0800678
3WCI 08006988
4TUBE
5WCI 5308015762
5AWCI 5303001260
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7WCI 5308016615
8SOCKET-LIGHT/LAMP
9316538904 Frigidaire Oven Lamp Light
10WCI 3916135
11WCI 5308012258
12WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
13WCI 5308017408
14WCI 3001370
15WCI 5308003604
16AWCI 5303001380
16TOP PANEL-REFR, W/ SNAP BUSHING
17WCI 5308000759
17AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
18WCI 5308000748
19DEFLECTOR-AIR
20COVER – AIR DEFLECTOR
215309918806 Frigidaire Refrigerator Light Switch Door
23WCI 01121808
24SHELF, REFR (2)
25WCI 3018425
26WCI 3018424
