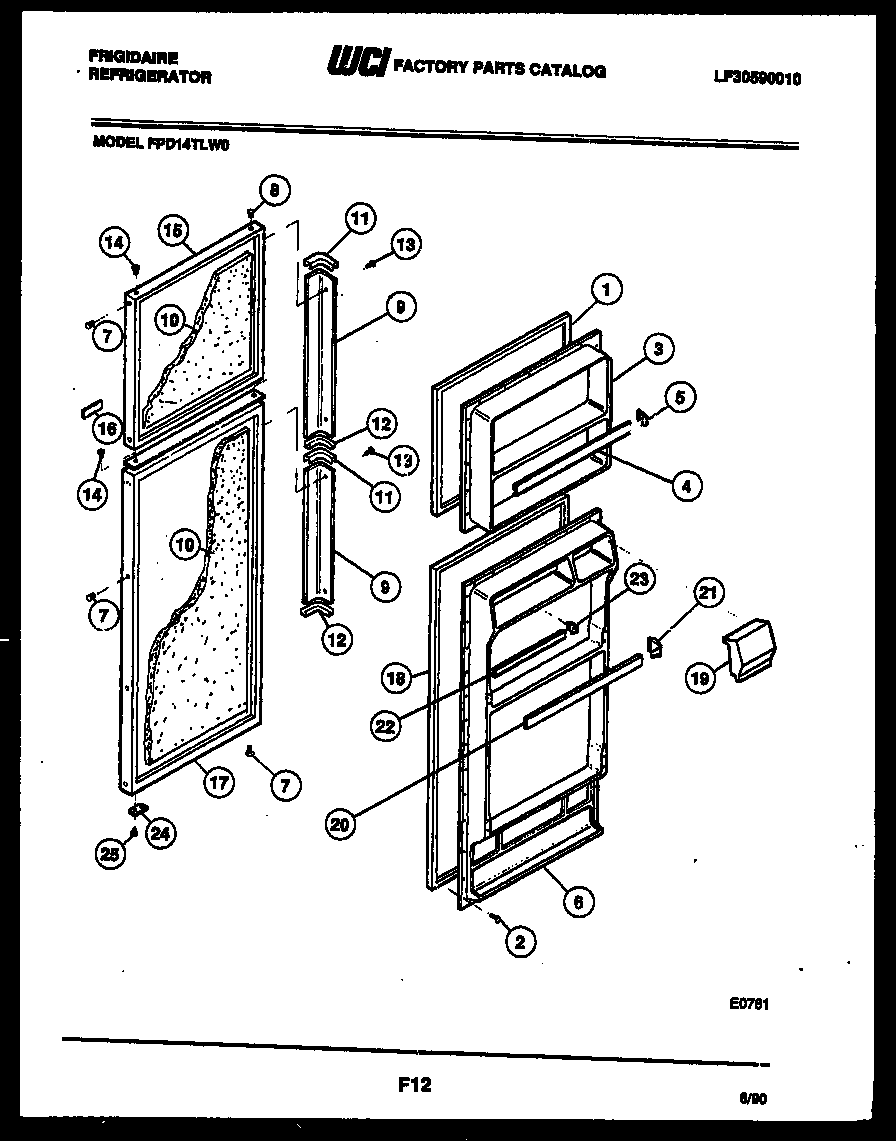

FPD14TLF0 02 – DOOR PARTS

Products

Position	Product
1	GASKET, FRZR DOOR, BROWN, MAGNETIC
2	218843801 Frigidaire Refrigerator Screw
3	WCI 3018416
4	WCI 3018417
6	WCI 3018418
7	BUTTON PLUG-COFFEE
8	BUTTON PLUG-COFFEE
9	HANDLE ASSEMBLY WITH CAP & TRIM (2)
10	INSULATION-BULK (NON-ILLUSTRATED)
11	WCI 5308010239
12	END CAP-BOTTOM (2)
13	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
14	BEARING-HINGE
15	WCI 3916045
16	NAMEPLATE
17	WCI 3916050
18	GASKET-REFR DOOR, MAGNETIC
19	WCI 5303018419
20	215516220 Frigidaire Refrigerator Door Rack
21	SUPPORT, RH (2)
21A	SUPPORT, LH (2) (NON-ILLUSTRATED)
22	RACK-REFR DOOR
23	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
23A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
24	WCI 5308000255
25	WCI 5308011745
