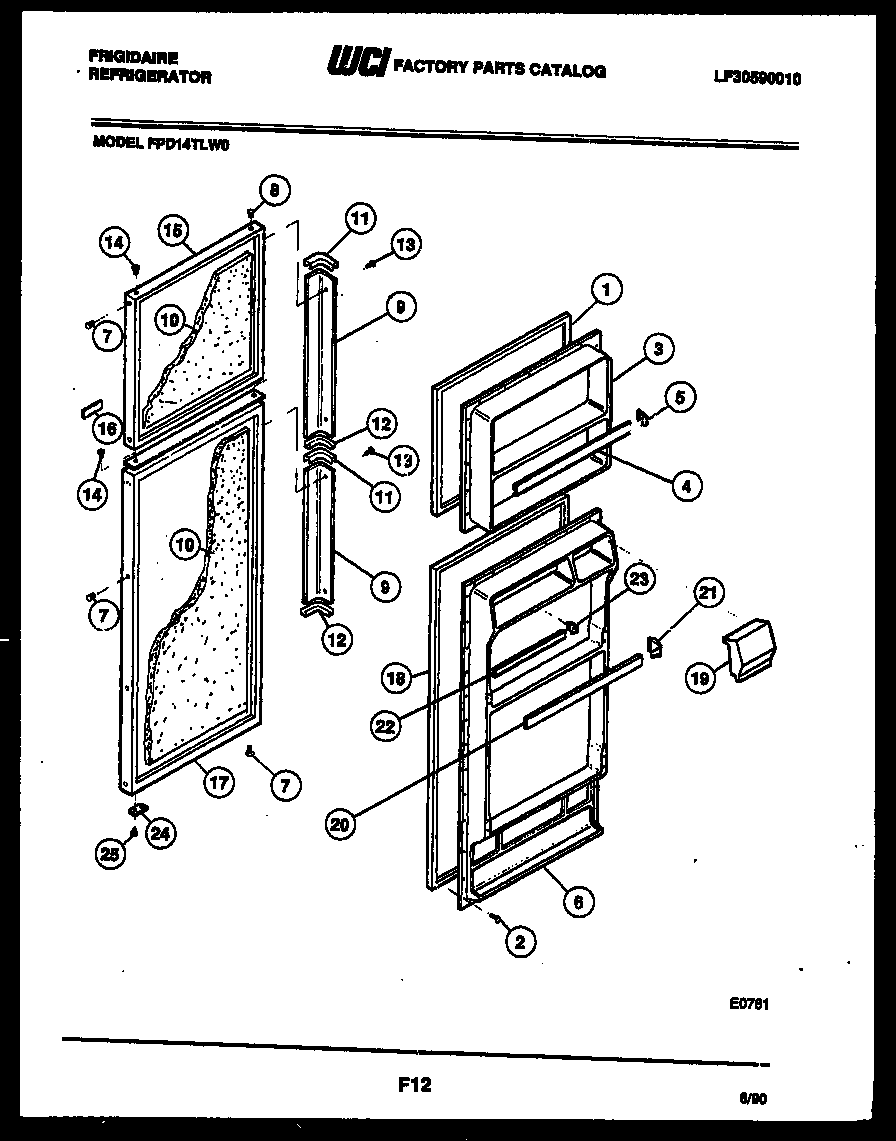

FPD14TLH0 02 – DOOR PARTSadmin2025-04-26T08:34:45+00:00FPD14TLH0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218843801 Frigidaire Refrigerator Screw |
| 3 | WCI 3018416 |
| 4 | WCI 3018417 |
| 6 | WCI 3018418 |
| 7 | BUTTON-WHEAT |
| 8 | BUTTON-WHEAT |
| 9 | HANDLE ASSEMBLY WITH CAP & TRIM (2) |
| 10 | INSULATION-BULK (NON-ILLUSTRATED) |
| 11 | WCI 5308010239 |
| 12 | END CAP-BOTTOM (2) |
| 13 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 14 | BEARING-HINGE |
| 15 | PANEL-FRZR DOOR, WHEAT |
| 16 | NAMEPLATE |
| 17 | PANEL-REFR DOOR, WHEAT |
| 18 | GASKET-REFR DOOR, MAGNETIC |
| 19 | WCI 5303018419 |
| 20 | 215516220 Frigidaire Refrigerator Door Rack |
| 21A | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 21 | SUPPORT, RH (2) |
| 22 | RACK-REFR DOOR |
| 23 | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 23A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 24 | WCI 5308000255 |
| 25 | WCI 5308011745 |
